Weidmuller 1146880000

This PCB plug-in connector is designed with a male header and a 5.08 mm pitch, accommodating 9 poles at a 90° angle. The solder pin length measures 3.2 mm, ensuring effective connectivity. The component is crafted from PA GF insulating material in an orange color, conforming to RAL 2000 specifications, and is equipped with tinned CuMg contacts.

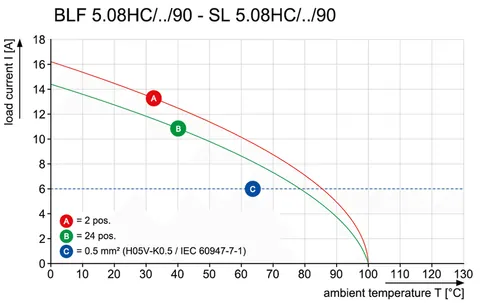

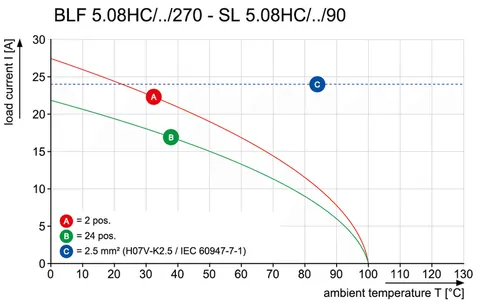

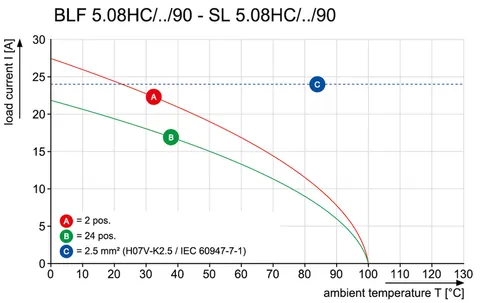

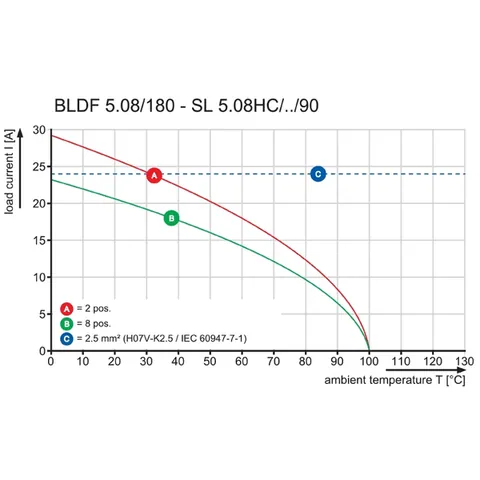

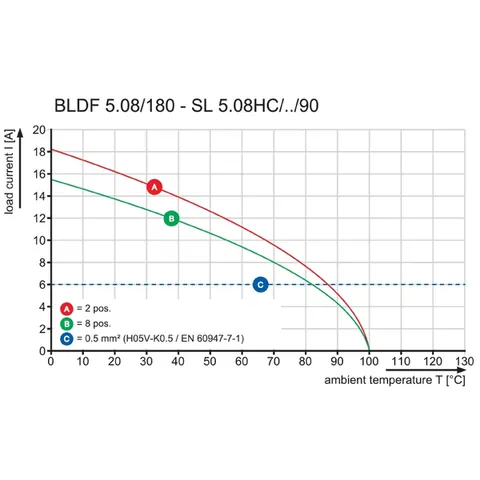

The connector meets various rated data standards, including UL 1059 with a rated voltage of 300 V and a rated current of 18.5 A for use group B. It is also compliant with IEC standards, with a maximum rated current of 24 A at 20°C for the minimum number of poles. The connector's operational temperature ranges from -50°C to 100°C, making it suitable for diverse applications.

With a compact footprint, measuring 45.72 mm in width and 12 mm in depth, it has a net weight of 3.274 g. This connector is part of the OMNIMATE Signal product family, specifically within the SL series, and is designed for board connections using THT soldering methods. It can withstand up to 25 plugging cycles and is capable of being coded for specific applications.

Approvals include cURus and EAC, ensuring compliance with international standards. The product is packaged in a box with dimensions of 35 mm x 115 mm x 170 mm, facilitating safe storage and transportation. Additional features such as gold-plated contact surfaces are available upon request.
