Weidmuller 1147030000

The PCB plug-in connector offers a male header configuration with a pitch of 5.08 mm. Designed for through-hole technology (THT) solder connection, it features 16 poles and a solder pin length of 3.2 mm. This connector is suitable for a variety of applications due to its rated voltage of 300 V and rated current of 18.5 A under certain conditions, as per UL 1059 standards.

Manufactured from PA GF insulating material in an orange color, this component ensures high durability and reliability with a Comparative Tracking Index (CTI) of ≥ 550 and an insulation strength of ≥ 108 Ω. The design adheres to several standards including IEC 60664-1 and IEC 61984, ensuring compatibility across various industrial applications.

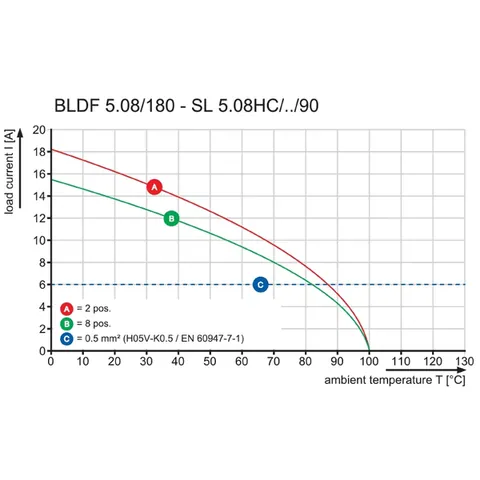

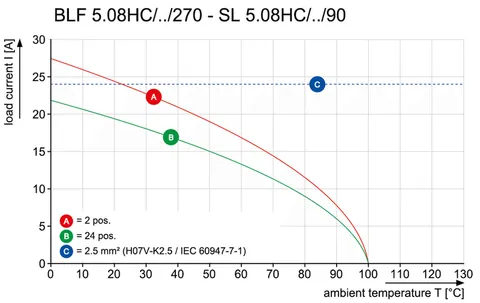

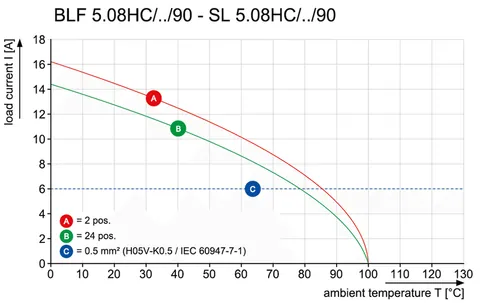

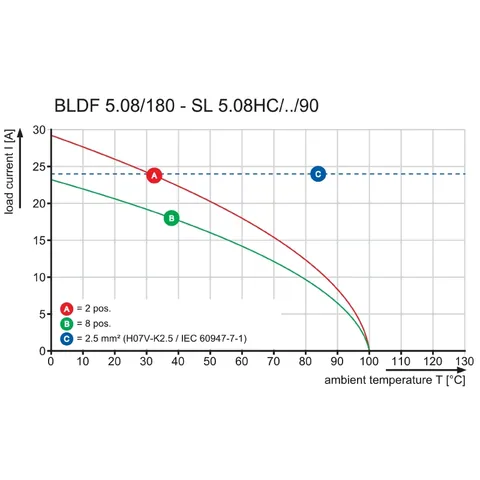

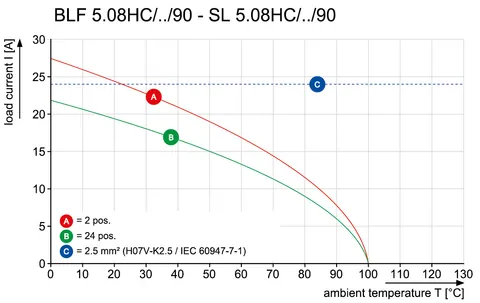

With a maximum operating temperature of 100 °C and a minimum of -50 °C, this connector maintains performance in a wide temperature range. It is packaged in a box with a net weight of 6.04 g, and dimensions measuring 81.28 mm in width, 11.7 mm in height, and 12 mm in depth.

Additional specifications include a solder pin tolerance of +0.1 / -0.3 mm and a plugging force of 10 N per pole, making it a versatile choice for PCB connections. The product family associated with this connector is the OMNIMATE Signal series, specifically designed for reliable board connections.
