Weidmuller 1147360000

The 5.08 mm PCB plug-in connector is designed with a male header and is suitable for through-hole soldering. It incorporates a 180° outgoing elbow and accommodates 4 poles. The solder pin length measures 3.2 mm, ensuring compatibility with various PCB designs.

Constructed from PA GF insulating material, this connector exhibits an orange color, conforming to RAL 2000 standards. It has a Comparative Tracking Index (CTI) of ≥ 550 and an insulation strength of ≥ 108 Ω. The UL 94 flammability rating is V-0, making it suitable for applications requiring high safety standards.

Rated for a maximum voltage of 300 V and a current of 18.5 A in group B according to UL 1059, the connector also holds approvals from cURus, EAC, and KEMAKEUR. It is tested in accordance with IEC 60664-1 and IEC 61984 standards, with a rated impulse voltage of 4 kV for surge voltage class/pollution degree II/2.

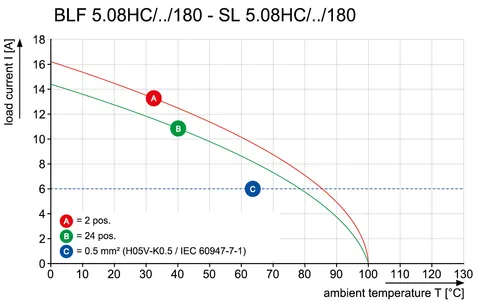

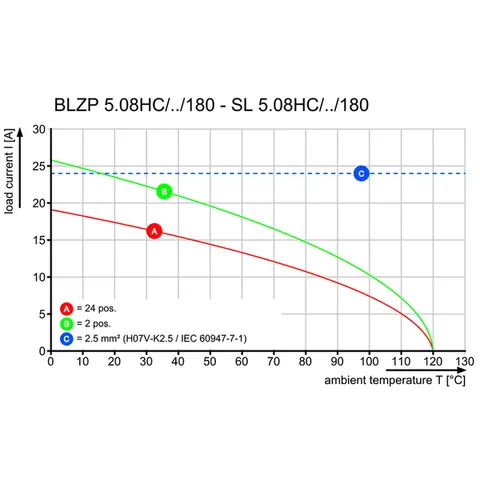

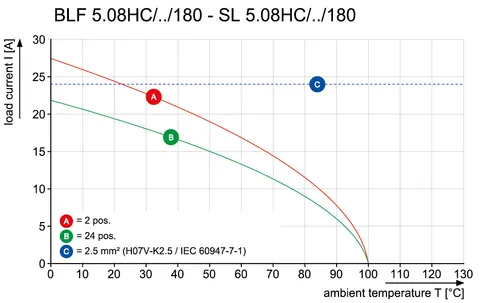

Dimensions include a width of 22.08 mm, a height of 15.2 mm, and a depth of 8.5 mm, contributing to a lightweight design with a net weight of 1.68 g. The connector operates effectively within a temperature range of -50 °C to 100 °C, making it suitable for various environmental conditions.

In terms of mechanical specifications, the connector supports a maximum plugging force of 10 N and a pulling force of 7.5 N per pole. With up to 25 plugging cycles, it offers reliable performance in repeated use. The product family is part of the OMNIMATE Signal series, ensuring broad compatibility with other components.
