Weidmuller 1147490000

The PCB plug-in connector features a male header with a closed side and a THT solder connection, designed specifically for through-hole mounting. With a pitch of 5.08 mm, it accommodates 9 poles and offers a solder pin length of 3.2 mm. The connector is tinned and comes in an orange color, fulfilling various application requirements.

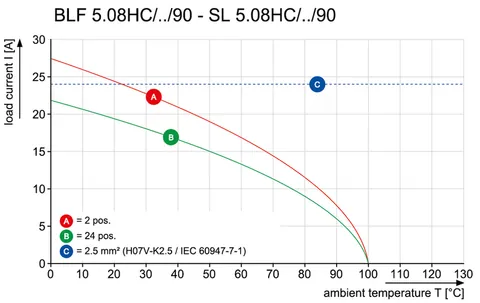

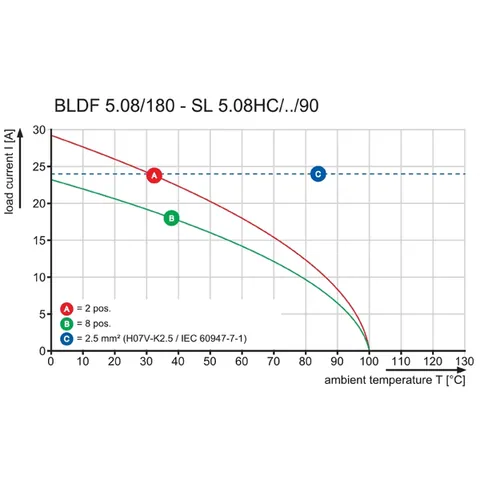

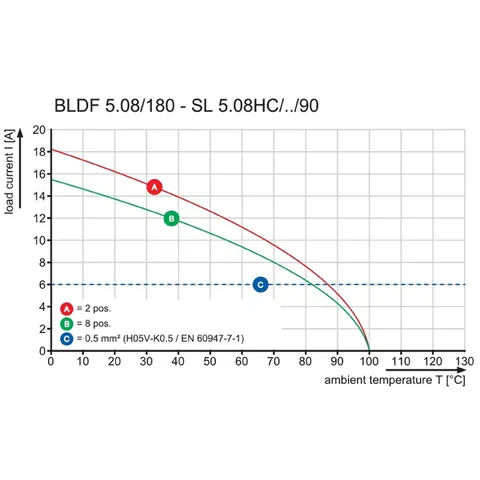

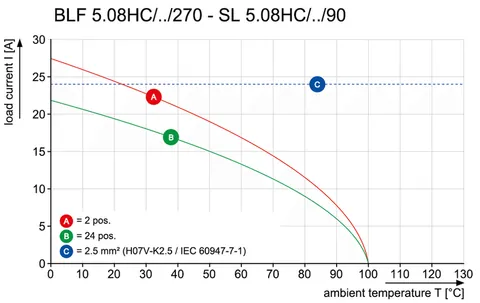

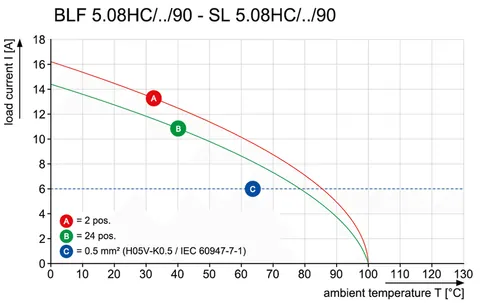

Rated according to UL 1059, this connector supports a maximum voltage of 300 V and a current of 18.5 A for use group B, and 10 A for use group D. It is compliant with IEC standards and can handle surge voltage levels up to 400 V under specific conditions. Furthermore, the insulating material used is PA GF, which has a Comparative Tracking Index (CTI) of ≥ 550 and meets the UL 94 flammability rating of V-0.

In terms of dimensions, the connector measures 48.92 mm in width, 11.7 mm in height, and 12 mm in depth, with a net weight of 3.94 g. It is built to operate within a temperature range of -50 °C to 100 °C, making it suitable for diverse environmental conditions. The design includes a solder eyelet hole diameter of 1.3 mm and supports up to 25 plugging cycles.

This component is part of the OMNIMATE Signal series, specifically within the SL 5.08 family, and is packaged in a box for shipping. Its robust design ensures reliability and compliance with international standards for quality and safety.
