Weidmuller 1148020000

This male header PCB plug-in connector features a 5.08 mm pitch and is designed for through-hole technology (THT) solder connections. With a total of 6 poles, it supports a maximum rated current of 18.5 A at 300 V, compliant with UL 1059 standards. The solder pin length measures 3.2 mm, with a tinned finish, and the component is housed in an orange plastic box.

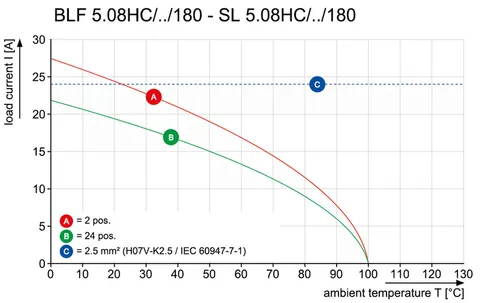

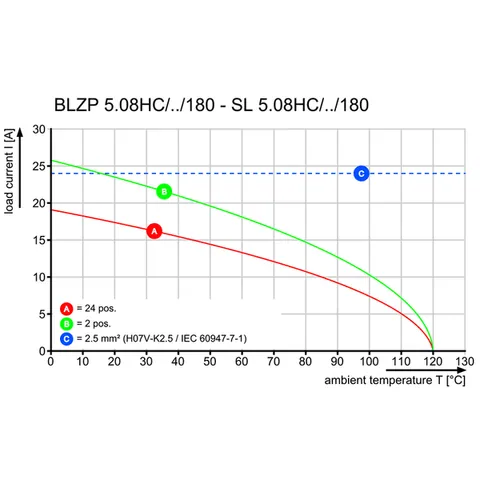

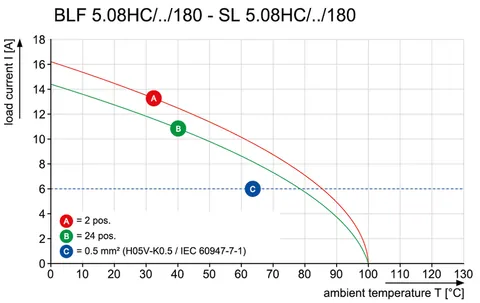

According to IEC standards, the connector is rated for currents up to 24 A at 20°C for the minimum number of poles. It is constructed from PA GF insulating material with a Comparative Tracking Index (CTI) of ≥ 550, ensuring robust insulation properties. The device is suitable for a wide operational temperature range from -50°C to 100°C, and has a storage temperature range of -25°C to 55°C.

Dimensions include a width of 40.28 mm, height of 15.2 mm, and depth of 8.5 mm, with a net weight of 3.46 g. The connector adheres to international standards and is suitable for various industrial applications. Notably, it allows for a maximum pulling force of 7.5 N per pole and can endure up to 25 plugging cycles. The classification codes include ETIM 6.0: EC002637 and EClass 9.0: 27-44-04-02.
