Weidmuller 1157040000

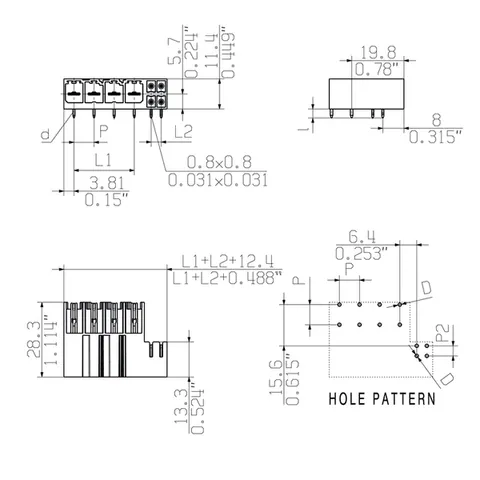

The SV 7.62HP/02/90G SC/08R SN BK BX is a THT solder connection PCB plug-in connector designed for robust electrical connections. It features a closed side male header with a pitch of 7.62 mm and accommodates two poles, each with a solder pin length of 3.5 mm. This connector is rated for a maximum voltage of 600 V and a current capacity of 35 A under specific conditions, adhering to UL 1059 standards. Its insulating material, PA GF, provides a high comparative tracking index (CTI) of ≥ 500, ensuring reliable performance across a temperature range of -50 °C to 130 °C.

The product complies with multiple approval standards including CSA and cURus, and it is packaged in a box with dimensions of 30 mm by 135 mm by 350 mm. With a net weight of 3 g, this connector is suitable for various applications requiring a secure and efficient electrical connection. It is designed for easy integration with PCBs while maintaining touch-safe protection according to DIN standards.
