Weidmuller 1157080000

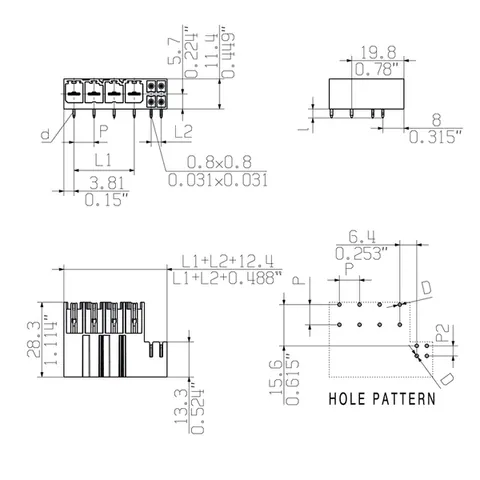

The SV 7.62HP/05/90G SC/08R SN BK BX is a male header PCB plug-in connector characterized by its closed side design and THT solder connection. With a pitch of 7.62 mm and 5 poles, it accommodates a solder pin length of 3.5 mm. This product is suitable for applications requiring reliable electrical connections and is designed to meet stringent standards.

Rated for various voltage classes, it supports a maximum voltage of 600 V under specific conditions, with a rated current of up to 35 A. The component is compliant with multiple international standards, including UL 1059 and IEC 60664-1, ensuring its suitability for diverse operational environments. The product also features a minimum clearance distance of 6.9 mm and a creepage distance of 9.6 mm, which are critical for safety in electrical applications.

Constructed from PA GF insulating material, the connector exhibits a high Comparative Tracking Index (CTI) of ≥ 500 and an insulation strength greater than ≥ 108 Ω, providing excellent electrical insulation. The connector is designed for a wide operating temperature range from -50 °C to 130 °C, making it versatile for various industrial applications.

Approvals from CSA and cURus validate its compliance with safety regulations, while the packaging is organized in a box measuring 350 mm in length, 135 mm in width, and 35 mm in height, ensuring protection during transport.
