Weidmuller 1279460300

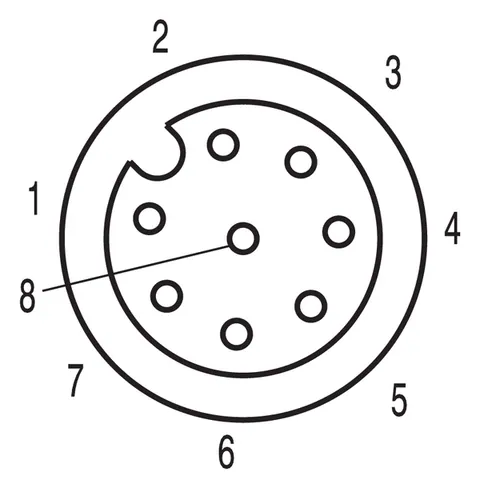

The M12 connector cable, model SAIL-M12GM12G-8S3.0U, comprises 8 poles with a length of 3 meters. It employs a pin, straight - socket configuration, adhering to the IEC 61076-2-101 connector standard. This cable is constructed with a PUR sheath, ensuring flexibility and durability, while the brass, nickel-plated threaded ring enhances connection reliability. The cable is shielded and features a gold-plated contact surface, supporting a rated voltage of 30 V and a rated current of 2 A.

Operating within a temperature range of -25 to +80 °C, this cable also meets IP67 protection standards when properly connected. It has a minimum bending radius of 5 times the cable diameter for stationary use and 12 times for moving applications, making it suitable for dynamic environments. The cable's construction allows for a torsion resistance of 360° per meter, and it can endure over 100 plugging cycles. Additionally, it is compliant with various environmental standards, including REACH and RoHS regulations.
