Weidmuller 1289670000

The 3.50 mm PCB plug-in connector is designed for efficient connections in electronic circuits. It features a male header with 10 poles arranged at a 90° angle, suitable for THT/THR solder connections. The solder pin length is 1.5 mm, ensuring reliable contact in various applications.

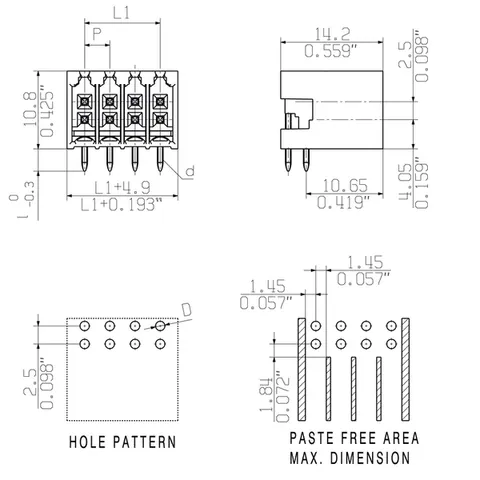

With a width of 18.9 mm and a height of 12.3 mm, this connector is compact yet robust. It is rated for a maximum voltage of 150 V and a current of 10 A according to UL 1059 standards. Additionally, it meets IEC 60664-1 and IEC 61984 requirements, ensuring compatibility with international safety standards.

The material composition includes a black LCP GF insulating material with a Comparative Tracking Index (CTI) of ≥ 175, offering high resistance to electrical tracking. The connector operates effectively within a temperature range of -50 °C to 120 °C, making it suitable for diverse environments.

This product is part of the OMNIMATE Signal series B2C/S2C 3.50, allowing for board connections with a pitch of 3.5 mm. It is packaged in a box, with dimensions of 35 mm length, 135 mm width, and 350 mm height for ease of handling and storage. Approvals from CSA, cURus, and EAC further validate its compliance with industry standards, making it a reliable choice for electronic applications.
