Weidmuller 1290140000

This PCB plug-in connector features a male header with a closed side design and supports THT/THR solder connections. It is configured with a pitch of 3.5 mm and comprises 24 poles, each equipped with a solder pin length of 3.5 mm. The connector is rated for a maximum voltage of 150 V under Use group B and 50 V under Use group C as per UL 1059 standards, while also supporting a rated current of 10 A across both groups.

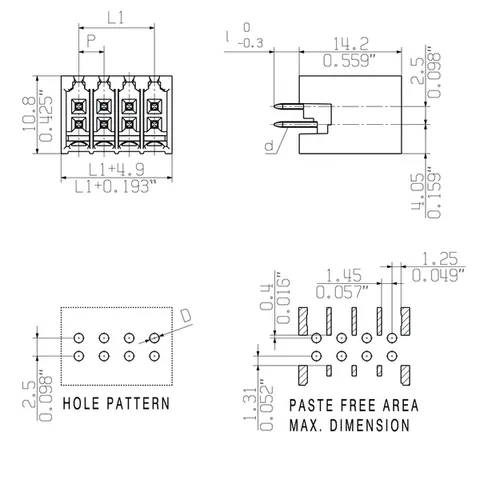

With dimensions of 43.4 mm in width, 17.7 mm in height, and 10.8 mm in depth, this component has a net weight of 8 g. The connector’s construction includes LCP GF insulating material with a black color, conforming to the requirements of ROHS. It is designed to operate within a temperature range from -50 °C to 120 °C and can withstand relative humidity levels up to 80% during storage.

This product is part of the OMNIMATE Signal - series B2C/S2C 3.50 - 2-row family and is packaged in a box with specific dimensions for shipping. It is suitable for a variety of electronic applications due to its robust specifications, including touch-safe protection compliant with DIN VDE standards and a maximum plugging force of 3.5 N per pole.
