Weidmuller 1290170000

The S2C-SMT 3.50/30/180G 3.5SN BK BX is a male header PCB plug-in connector designed for THT/THR solder connections. With a pitch of 3.5 mm and a total of 30 poles, this component is particularly suited for space-constrained applications where efficient connectivity is essential.

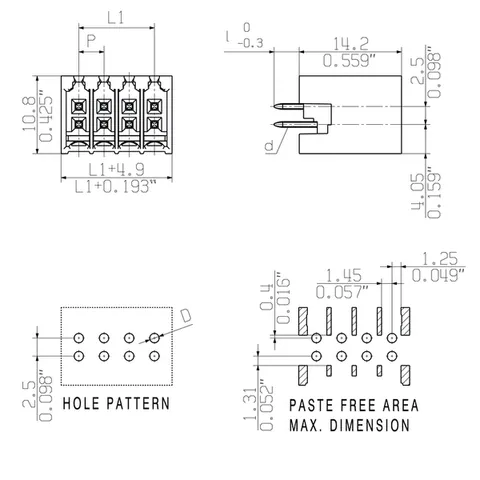

Measuring 53.9 mm in width, 17.7 mm in height, and 10.8 mm in depth, it has a net weight of 10.267 g. The solder pin length is 3.5 mm, ensuring reliable electrical contact. The connector supports a rated voltage of up to 150 V in use group B and 50 V in use group C, with a rated current capacity of 10 A for both groups.

This component is compliant with several standards, including IEC 60664-1 and IEC 61984, and is classified under the ETIM 6.0 and 7.0 categories. It features a black insulating material with a Comparative Tracking Index (CTI) of ≥ 175 and can operate at temperatures ranging from -50 °C to 120 °C. Additionally, it is suitable for environments with a maximum relative humidity of 80% during storage.

The connector is packaged in a box with dimensions of 35 mm in length, 145 mm in width, and 340 mm in height. The product family belongs to the OMNIMATE Signal series, providing a reliable solution for various electronic applications.
