Weidmuller 1290250000
S2C-SMT 3.50/10/180LF 3.5SN BK BX
Product Description

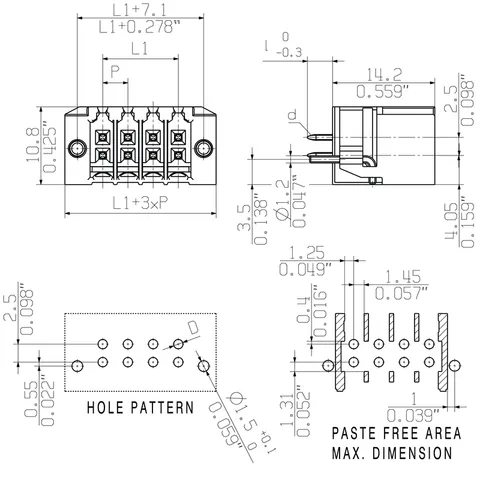

The S2C-SMT 3.50/10/180LF 3.5SN BK BX is designed as a male header PCB connector utilizing a THT/THR solder connection method. With a pitch of 3.5 mm and an outgoing elbow at 180°, this connector supports 10 poles, each with a solder pin length of 3.5 mm.
Rated for a maximum voltage of 150 V and a current capacity of 10 A in compliance with UL 1059, this component meets various international standards including IEC 60664-1 and IEC 61984. It is suitable for operating temperatures ranging from -50 °C to +120 °C, ensuring versatility in different environments. The insulating material is LCP GF, and the connector has a black finish, adhering to RAL 9011 specifications.
Furthermore, this connector is packaged in a box, with dimensions of 30 mm in length, 135 mm in width, and 350 mm in height. With a plug-in cycle endurance of 25 and a maximum plugging force per pole of 3.5 N, the S2C-SMT connector is engineered for reliable performance in various applications.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (cURus)
- cURus
- Certificate No. (cURus)
- E60693
- Rated voltage (Use group B / UL 1059)
- 150 V
- Rated voltage (Use group C / UL 1059)
- 50 V
- Rated current (Use group B / UL 1059)
- 10 A
- Rated current (Use group C / UL 1059)
- 10 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1290250000, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
