Weidmuller 1290340000

The PCB plug-in connector features a male header design with a pitch of 3.50 mm, accommodating 26 poles in a 180° orientation. With a solder pin length of 3.5 mm, this component provides reliable connectivity through THT/THR solder connections. It is constructed from LCP GF material and is presented in a black color.

This connector is rated for a maximum voltage of 150 V (Use group B) and supports a rated current of 10 A under various UL 1059 ratings. It complies with several standards including IEC 60664-1, IEC 61984, and has approvals from CSA, cURus, and EAC. The connector exhibits a high Comparative Tracking Index (CTI) of ≥ 175 and is suitable for operation in temperatures ranging from -50 °C to +120 °C, making it versatile for various applications.

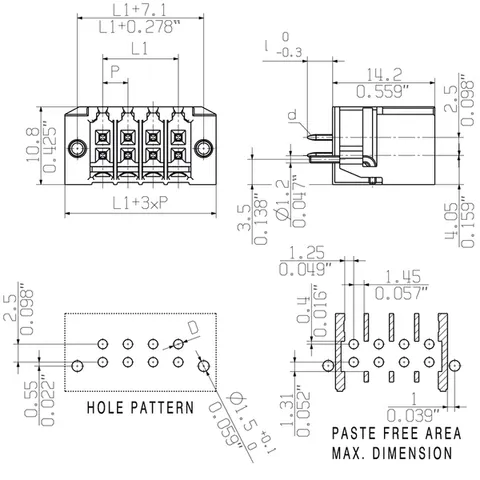

Its dimensions include a width of 49.1 mm, a height of 17.7 mm, and a depth of 10.8 mm, contributing to a compact profile. The connector is designed for a maximum plugging force of 3.5 N per pole and maintains a touch-safe protection rating of IP 20, ensuring operational safety. This product is part of the OMNIMATE Signal - series B2C/S2C 3.50 - 2-row family, and is packaged in a box.
