Weidmuller 1330620000

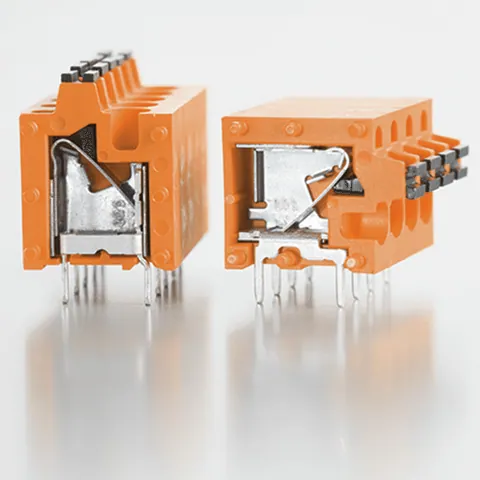

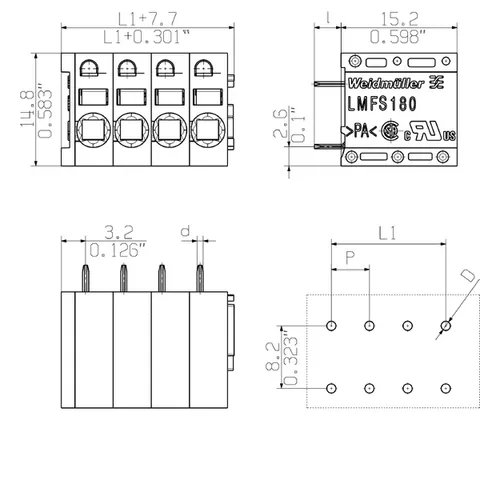

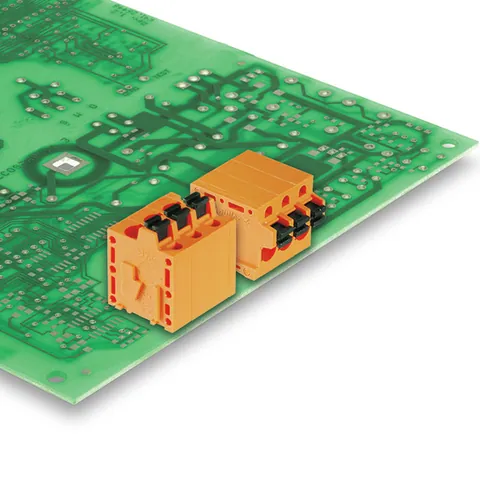

The LMFS 5.00/17/180 3.5SN OR BX includes printed circuit board terminals with a pitch of 5.00 mm, accommodating 17 poles and offering a conductor outlet direction of 180°. The solder pin length is 3.5 mm, and the terminals are finished in orange. The maximum clamping range is 2.5 mm², enabling flexible connections.

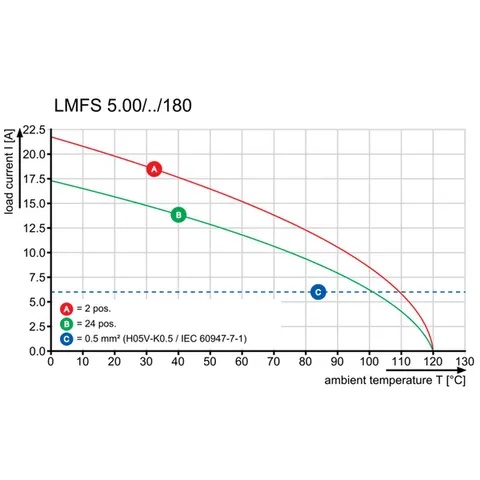

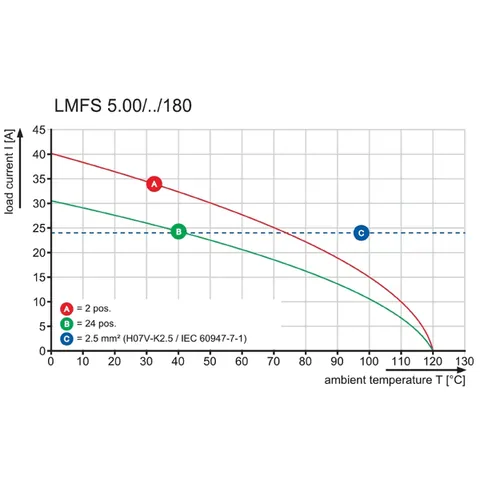

Compliance with multiple standards, including UL 1059 and IEC specifications, ensures reliable performance. The rated voltage for this component is 300 V for both use groups, with a rated current of 20 A for group B and 10 A for group D. The product is also certified by CSA and cURus, with an UL file number E60693, indicating adherence to rigorous safety and performance criteria.

Constructed from Wemid (PA) insulating material, the terminals have a high Comparative Tracking Index (CTI) of ≥ 600 and an insulation strength of ≥ 108 Ω. They are capable of operating in temperatures ranging from -50 °C to 120 °C, making them suitable for various industrial applications. Additionally, the packaging comes in a box measuring 348 mm in length, 135 mm in width, and 30 mm in height.
