Weidmuller 1331410000
LMF 5.08/23/180 3.5SN OR BX
Product Description

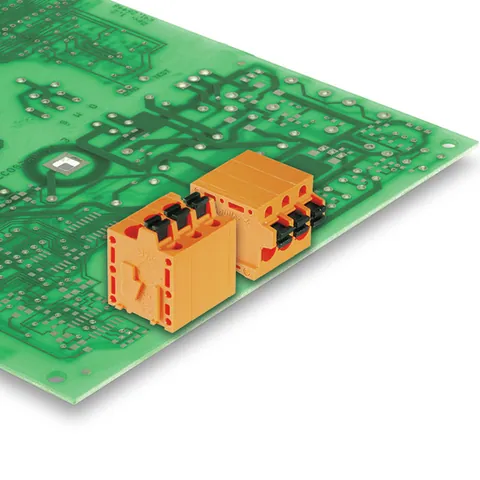

The LMF 5.08/23/180 3.5SN OR BX is a printed circuit board terminal designed for efficient electrical connectivity. With a pitch of 5.08 mm and 23 poles arranged at a 180° angle, this component is optimized for space-saving PCB layouts. The solder pin length measures 3.5 mm, suitable for a variety of applications, and ensures reliable solder joints.

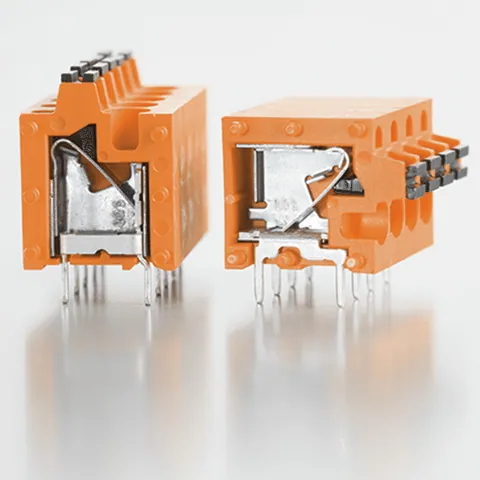

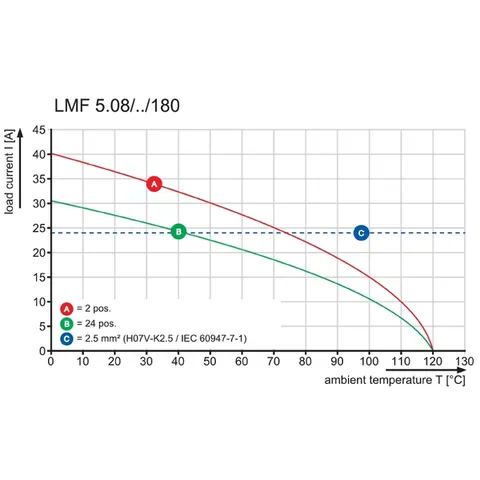

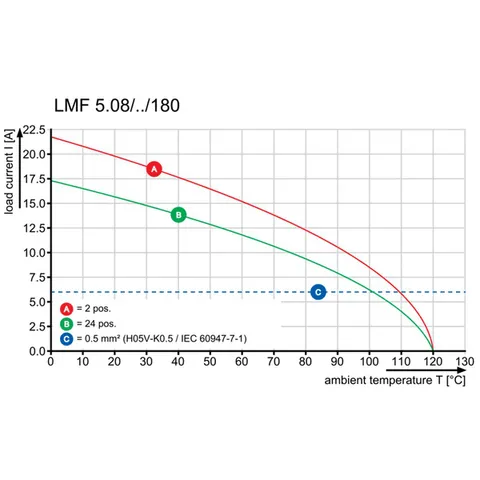

Constructed from high-quality materials, the terminal features tinned copper contacts and an insulating body made from Wemid (PA) in an orange color. It is rated for a maximum voltage of 300 V and can handle currents up to 20 A under specific conditions, making it compliant with UL 1059 and CSA standards for safety and performance. The terminal is also designed to operate within an extensive temperature range from -50 °C to 120 °C, suitable for diverse environmental conditions.
Approval certifications include cURus, CSA, and EAC, confirming compliance with international safety standards. The device is packaged in a box, with dimensions that facilitate effective storage and handling.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (cURus)
- cURus
- Certificate No. (cURus)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 20 A
- Rated current (Use group D / UL 1059)
- 10 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1331410000, including specifications and features.
CAD Models

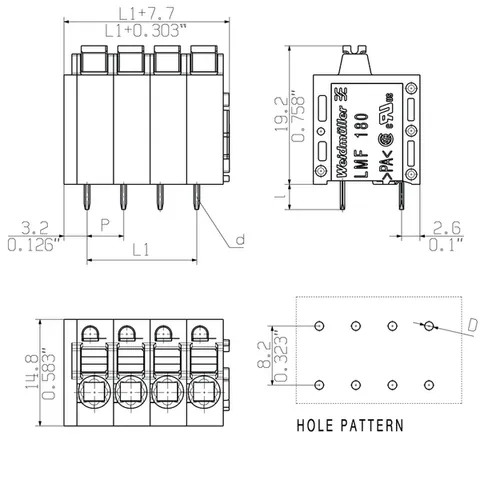

3D CAD model and technical drawings, ready for your design software.
