Weidmuller 1543340000

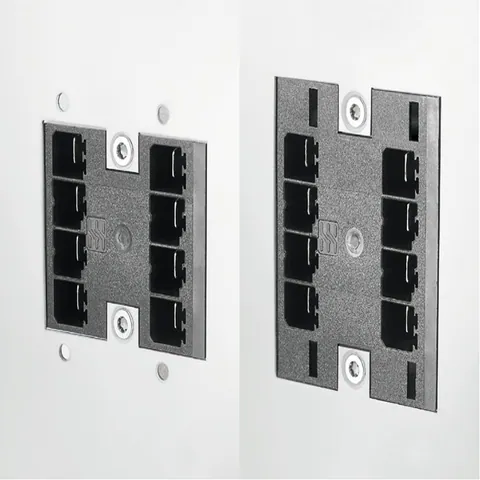

PCB Plug-in Connector Male Header 12 Poles 270° 3.2mm
Product Description
The connector is designed for printed circuit board applications and features a male header configuration with a closed side. It has a total of 12 poles and utilizes a THT solder connection at a pitch of 7.62 mm (0.3 inch). The solder pins extend 3.2 mm in length, with a length tolerance of +0.1 / -0.3 mm. The component is designed to meet various rated data standards, including UL 1059 and IEC 60664-1.

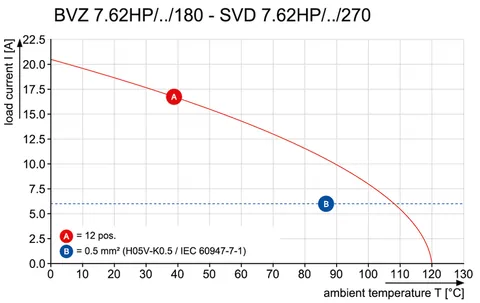

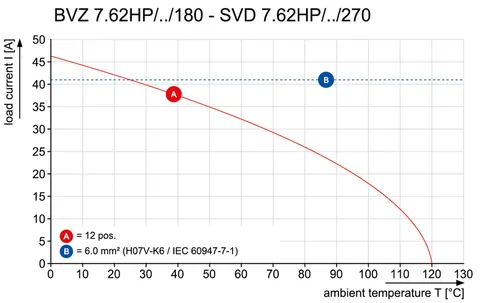

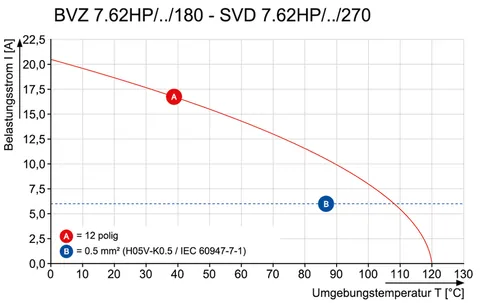

With an operating temperature range of -50 °C to 120 °C and a storage temperature range of -25 °C to 55 °C, this connector is suitable for diverse environments. The rated voltage capabilities are up to 600 V depending on the application group. The connector also features a rated current of up to 47 A, depending on the number of poles and temperature conditions.
Constructed from high-quality materials, the insulating material is PA GF with a black finish. The contact material is a copper alloy, tinned for durability. With a touch-safe protection rating of IP 20 according to DIN VDE standards, this component is designed for secure use in various applications. The connector is packaged in a box for convenient storage and transport.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (cURus)
- cURus
- Certificate No. (cURus)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group C / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 600 V
- Rated current (Use group B / UL 1059)
- 30 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1543340000, including specifications and features.
CAD Models

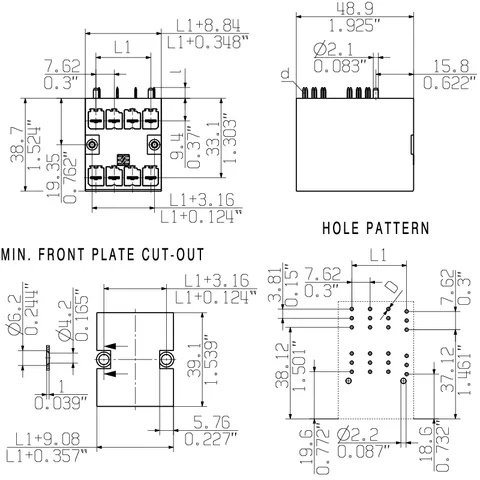

3D CAD model and technical drawings, ready for your design software.
