Weidmuller 1628410000
PCB Plug-in Connector Male Header 7.50 mm 90° 3.2SN OR BX
Product Description

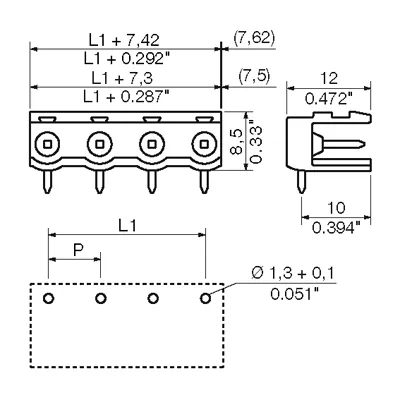

The connector is designed for board connection with a pitch of 7.5 mm and includes 7 poles. It utilizes a THT solder connection methodology, ensuring secure attachment to the PCB. The solder pin length is specified at 3.2 mm with a tolerance of ± 0.1 mm, accommodating a solder eyelet hole diameter of 1.3 mm.
Constructed from PBT insulating material in an orange color, this connector complies with various standards including UL 1059 and IEC 60664-1. Its operational temperature ranges from -50 °C to 100 °C, while storage conditions allow temperatures between -25 °C and 55 °C with a maximum relative humidity of 80%. The unit has a height of 11.7 mm and a depth of 12 mm, weighing 3.74 g.
Rated for a maximum current of 15 A at 300 V, this connector also meets CSA, EAC, and UR approvals. Furthermore, it features a volume resistance of 4.50 mΩ and is touch-safe according to DIN VDE 57 106. The design facilitates coding and is compliant with IPC standards for quality assurance.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (UR)
- UR
- Certificate No. (UR)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 15 A
- Rated current (Use group D / UL 1059)
- 10 A
