Weidmuller 1760500000

The PM 5.08/03/90 3.5SN OR BX is a printed circuit board terminal designed for efficient connections in electronic applications. This component has a pitch of 5.08 mm and accommodates three poles, with a solder pin length of 3.5 mm. The pressure clamp connection allows for a maximum clamping range of 2.5 mm², making it suitable for various wire sizes, from AWG 26 to AWG 14.

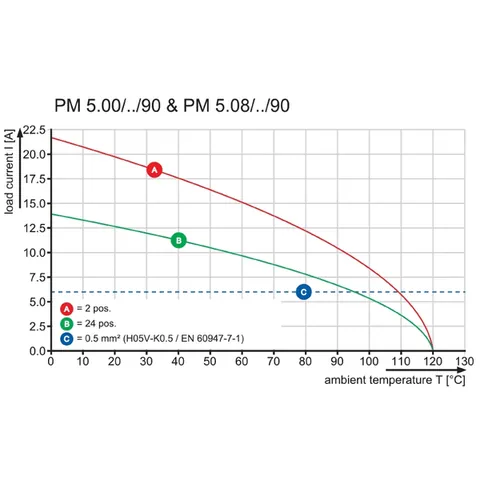

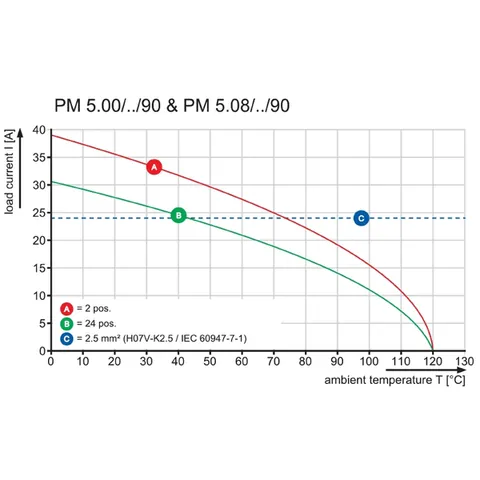

Constructed from Wemid (PA) insulating material in an orange color, this terminal meets a Comparative Tracking Index (CTI) of ≥ 600, ensuring high reliability in challenging environments. It operates effectively across a temperature range from -50 °C to +120 °C and maintains insulation strength exceeding 108 Ω. Rated for a maximum current of 24 A and a voltage of 600 V under surge voltage class II, it also complies with various international standards, including IEC 60664-1 and IEC 61984.

This terminal is packaged in a box with dimensions of 50 mm in length, 140 mm in width, and 330 mm in height, ensuring safe storage and transport. The product is part of the OMNIMATE Signal series and is characterized by its 90° conductor outlet direction and THT solder connection method. Compliance with CSA and cURus standards enhances its applicability in diverse industrial settings. The Designation Code for this product is E60693.
