Weidmuller 1769460000

The LM2H 5.08/48/90 3.5SN OR BX is designed for PCB applications, featuring a compact 5.08 mm pitch and accommodating up to 48 poles. The component supports a solder pin length of 3.5 mm and utilizes a clamping yoke connection, allowing for a maximum clamping range of 2.5 mm².

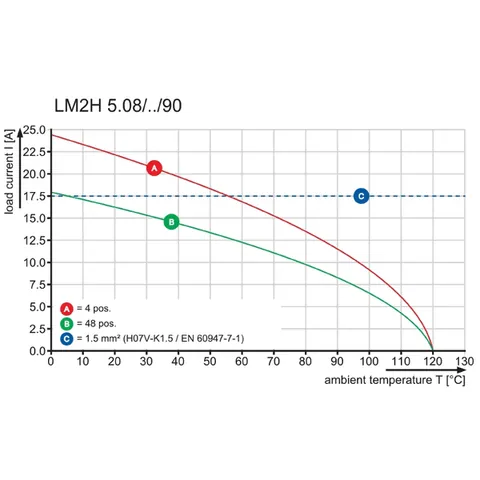

Constructed from Wemid (PA) insulating material, the terminal exhibits a distinctive orange color, adhering to RAL 2000. It is rated for 300 V under both UL 1059 use groups B and D, and can handle a rated current of 15 A for use group B and 10 A for group D. The terminal is tested according to IEC standards, ensuring a rated impulse voltage of 4 kV and a short-time withstand current resistance of 120 A for 1 second.

With a width of 120.38 mm and a height of 40.1 mm, this terminal is designed for surface mounting with THT solder connections. It is suitable for a wide range of wire sizes, accommodating AWG 24 to AWG 14, and is compliant with various certifications including CSA, cURus, and EAC. The operating temperature range spans from -50 °C to 120 °C, making it versatile for different environmental conditions.
