Weidmuller 1774762001

The PCB plug-in connector features a male header suitable for THT/THR solder connections with a pitch of 5.08 mm and a 90° angle. This component supports two poles with a solder pin length of 1.5 mm, ensuring effective connectivity in various applications.

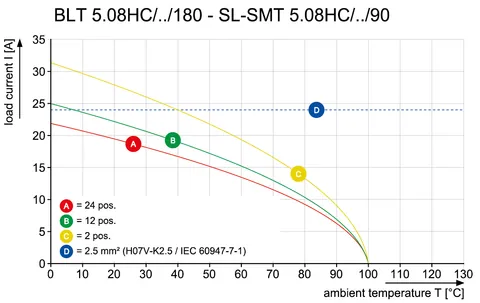

Rated for a maximum voltage of 300 V and a current of up to 18.5 A (use group B according to UL 1059), this connector is compliant with multiple standards including IEC 60664-1 and IEC 61984. The surge voltage rating reaches 400 V for pollution degree II, making it suitable for demanding environments.

Constructed from LCP GF material with a black finish, it features a Comparative Tracking Index (CTI) of ≥ 175, ensuring reliable insulation performance. The component is designed to operate within a temperature range of -50 °C to 100 °C and supports a maximum relative humidity of 80% during storage.

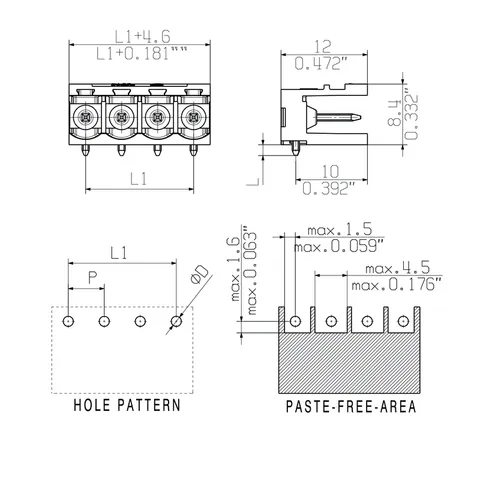

With a net weight of 0.97 g and dimensions of 10.16 mm width, 10 mm height, and 12 mm depth, this connector is compact and efficient. It is packaged in a box with specific dimensions for secure storage and transport. The product is part of the OMNIMATE Signal - series BL/SL 5.08, designed for robust applications.
