Weidmuller 1775082001

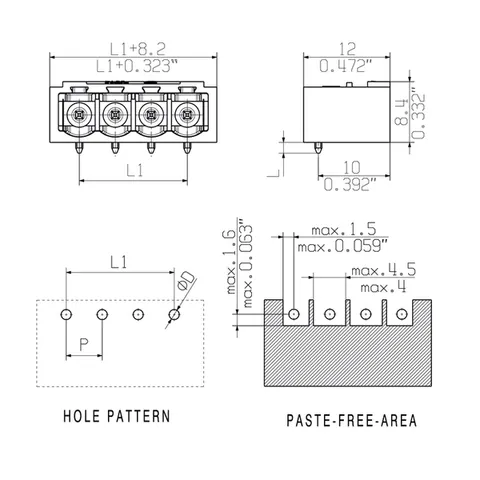

The SL-SMT 5.08HC/10/90G 1.5SN BK BX is a male header PCB connector designed for reliable THT/THR solder connections. With a pitch of 5.08 mm and a 90° outgoing elbow, it accommodates 10 poles, each featuring a solder pin length of 1.5 mm. The connector is constructed from LCP GF insulating material and comes in a black color, compliant with industry standards.

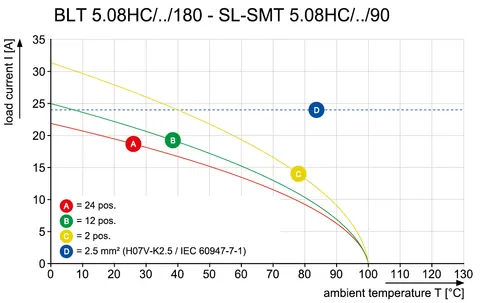

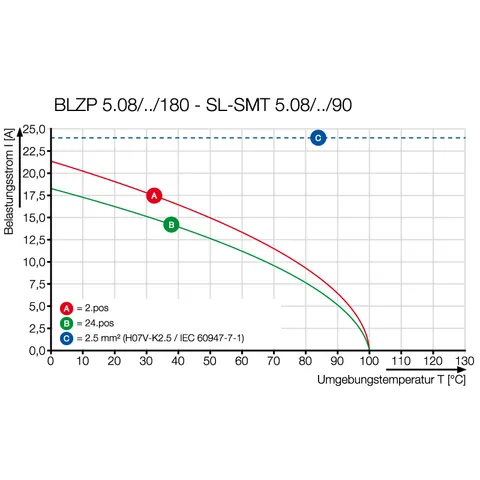

Rated for a maximum voltage of 300 V and a rated current of 18.5 A per pole under UL 1059, this connector also meets IEC standards, allowing for a rated current of up to 27.5 A, depending on the number of poles and temperature conditions. The operational temperature range extends from -50 °C to 100 °C, ensuring versatility across various applications.

With an insulation strength of ≥ 108 Ω and a Comparative Tracking Index (CTI) of ≥ 175, this connector is built for durability and safety. The rated impulse voltage is 4 kV for pollution degree II, ensuring robust performance in demanding environments. Packaging is in a box, measuring 50 mm in length, 100 mm in width, and 180 mm in height.

Approval certifications include CSA, EAC, and UR, with compliance to RoHS standards. The connector's gold-plated contact surfaces can be provided upon request, enhancing its connectivity attributes and reliability.
