Weidmuller 1793710000

The SC 3.81/03/180F 3.2SN BK BX is a PCB plug-in connector designed with a male header and a flange for enhanced stability during assembly. This component utilizes a THT solder connection with a pitch of 3.81 mm and accommodates three poles, ensuring reliable electrical connections.

With a rated voltage of 300 V and a maximum current of 10 A per UL 1059 standards, this connector is suitable for various applications requiring robust electrical performance. It is tested according to IEC standards, exhibiting a rated current of 17.5 A at 20°C under minimum pole conditions. The device also features an insulation strength greater than 108 Ω and a Comparative Tracking Index (CTI) of ≥ 550, indicating excellent insulating properties.

Constructed from PA GF material and finished in black, the connector complies with the UL 94 flammability rating of V-0, enhancing its safety profile. It operates effectively within a temperature range of -50 °C to 120 °C and can withstand a short-time withstand current of 76 A for 1 second.

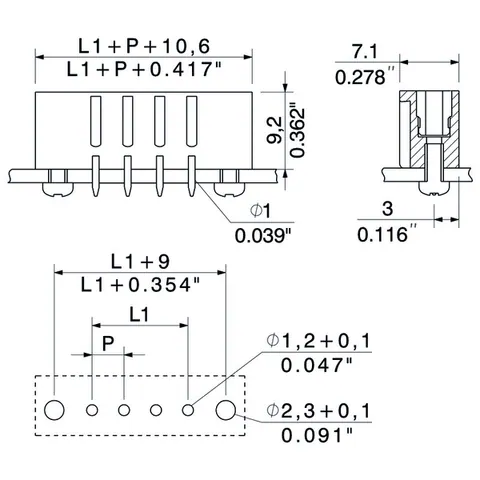

Notable dimensions include a width of 18.22 mm, height of 12.4 mm, and depth of 7.1 mm, with a net weight of 2.06 g. The connector is packaged in a box, with dimensions of 44 mm by 60 mm by 78 mm. This product is part of the OMNIMATE Signal - series BC/SC 3.81 and adheres to various international standards, including cURus and EAC approvals.
