Weidmuller 1797300000
5.00 mm Male Header Connector with 9 Poles and 90° Angle
Product Description
The 5.00 mm male header connector, designated as SL-SMT 5.00HC/09/90LF 1.5SN BK BX, is designed for board connections utilizing THT/THR solder. It incorporates 9 poles with a solder pin length of 1.5 mm, ensuring reliable electrical connections. The connector is constructed from LCP GF insulated material, compliant with UL 94 V-0 flammability standards, and it features a black finish.

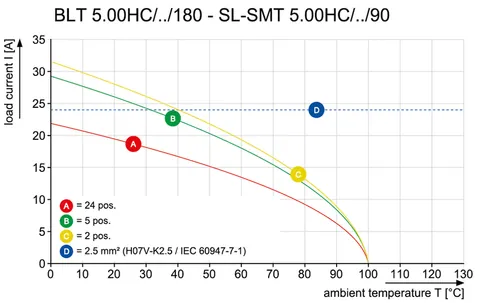

With a rated voltage of 300 V and a rated current of 18.5 A (group B per UL 1059), this connector is suitable for various applications requiring robust connectivity. It supports temperature ranges from -50 °C to 100 °C for operational stability. The product has been tested according to IEC 60664-1 and IEC 61984 standards, ensuring it meets rigorous safety and performance criteria.

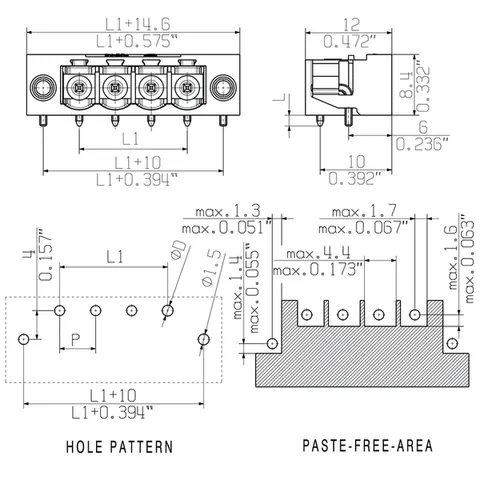

Approval certifications include CSA, EAC, and UR, indicating compliance with international safety standards. The connector's dimensions are 54.8 mm in width, 10 mm in height, and 12 mm in depth, with a net weight of 4.98 g. It is packaged in a box for secure storage and transport.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (UR)
- UR
- Certificate No. (UR)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 18.5 A
- Rated current (Use group D / UL 1059)
- 10 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1797300000, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 19-09-2026
