Weidmuller 1797780000

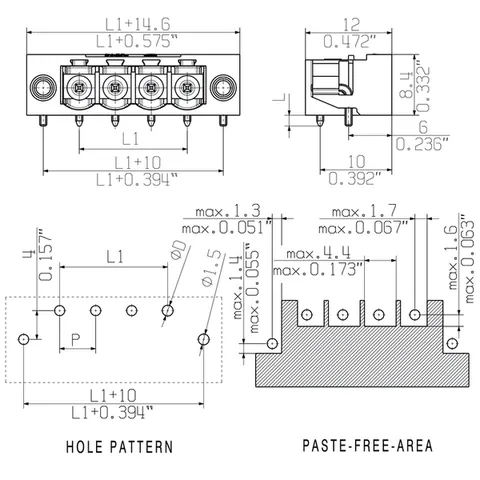

The SL-SMT 5.00HC/05/90LF 1.5SN BK RL is designed for reliable PCB integration with a 5 mm pitch and a total of five poles, each equipped with a 1.5 mm solder pin length. This male header connector supports THT/THR solder connections and is characterized by its 90° outgoing elbow configuration.

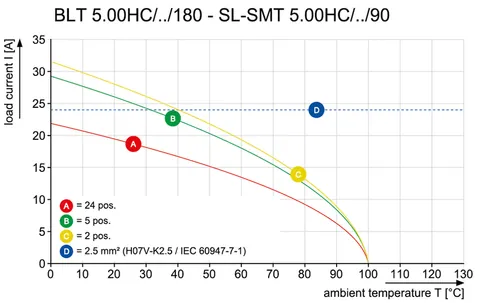

Constructed from high-quality materials, the connector exhibits impressive insulation properties, with a Comparative Tracking Index (CTI) of ≥ 175 and insulation strength exceeding 108 Ω. It is rated for a maximum voltage of 400 V under surge voltage class II/2 conditions and can handle a rated current of up to 27.5 A at 20°C for a minimum number of poles.

This product complies with several international standards, including IEC 60664-1 and IEC 61984, and has received multiple approvals, including CSA, EAC, and UR certifications. The assembly is designed to function effectively within a temperature range of -50°C to 100°C and can be stored in environments ranging from -25°C to 55°C with a maximum relative humidity of 80%.

The Designation Code for this connector is highly relevant for application-specific designs, ensuring that it meets necessary regulatory and performance standards. Its black color (RAL 9011) and tinned contact surfaces enhance both aesthetics and functionality.
