Weidmuller 1813660000

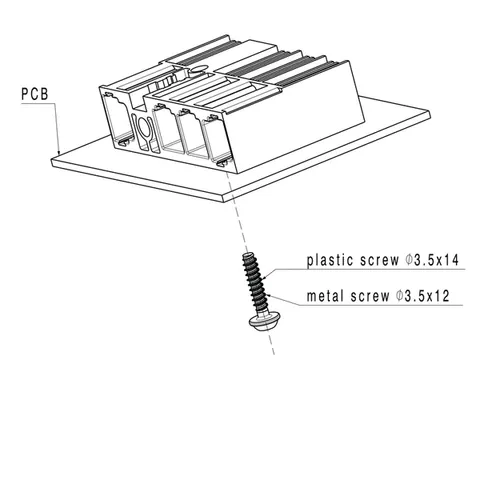

The 10.16 mm PCB plug-in connector is designed with a male header featuring a 180° outgoing elbow and accommodates three poles. It utilizes a THT solder connection with a solder pin length of 3.5 mm and is constructed from a black PBT GF insulating material.

This connector is rated for a maximum voltage of 600 V and a current rating of 60 A under specific use groups according to UL 1059 standards. It exhibits a minimum clearance distance of 8.9 mm and a minimum creepage distance of 10.5 mm, ensuring reliable performance in various applications. The connector is silver-plated to enhance conductivity and reduce resistance.

Compliance with industry standards such as IEC 60664-1 and IEC 61984 is ensured, supporting rated impulse voltages up to 8 kV depending on the pollution degree. The connector is suitable for operating temperatures ranging from -50 °C to 120 °C and has a storage temperature range of -25 °C to 55 °C.

Classified under the OMNIMATE Power - series BU/SU 10.16HP, this connector features a pitch of 10.16 mm (0.4 inch) and is touch-safe according to DIN VDE standards. It is designed for a maximum of 50 plugging cycles and can be coded for specific applications.
