Weidmuller 1837800000
5.08 mm PCB Plug-in Connector, Male Header, 19 Poles, 90°
Product Description
The 5.08 mm PCB plug-in connector is structured with a male header and a flange, enabling effective board connection through THT/THR soldering. It accommodates 19 poles, with a solder pin length of 3.2 mm. The connector's black, tinned contacts ensure durability and reliability in various applications.

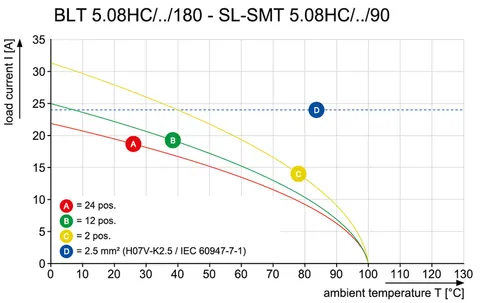

Rated according to UL 1059, this connector supports a voltage of 300 V and can handle currents of up to 18.5 A under specific conditions. It meets several international standards, including IEC 60664-1, and is classified for use in environments with a pollution degree of II and III. The connector's insulation strength exceeds 108 Ω, and it has a Comparative Tracking Index of ≥ 175, ensuring it operates effectively across a temperature range from -50 °C to 100 °C.
With dimensions of 106.68 mm in width, 11.7 mm in height, and 12 mm in depth, it weighs approximately 9.9 g. The product is packaged in a box, with careful attention to IPC conformity for quality assurance. Designation Code: SL-SMT 5.08HC/19/90F 3.2SN BK BX.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (UR)
- UR
- Certificate No. (UR)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 18.5 A
- Rated current (Use group D / UL 1059)
- 10 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1837800000, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
