Weidmuller 1837980000
PCB Plug-in Connector 5.08 mm 2 Poles 180° Male Header
Product Description
The connector is designed with a pitch of 5.08 mm and accommodates 2 poles, making it suitable for various applications requiring board connections. The solder pin length measures 3.2 mm, ensuring a secure connection, while its tinned contacts enhance conductivity and reliability.
Rated for a maximum current of 18.5 A and a voltage of 300 V according to UL standards, this connector is widely applicable in electrical systems. The construction includes LCP GF as the insulating material, which offers a Comparative Tracking Index (CTI) of ≥ 175 and is compliant with UL 94 flammability rating V-0. Furthermore, it operates effectively in a temperature range from -50 °C to 100 °C, ensuring reliability in diverse environments.
With a net weight of 0.96 g and dimensions of 10.16 mm in width and 15.2 mm in height, this connector is compact and efficient. It is packaged in a box with specific dimensions for ease of handling.
For further compliance, this product adheres to multiple certifications, including CSA, EAC, and UR, enhancing its acceptance in international markets.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (UR)
- UR
- Certificate No. (UR)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 18.5 A
- Rated current (Use group D / UL 1059)
- 10 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1837980000, including specifications and features.

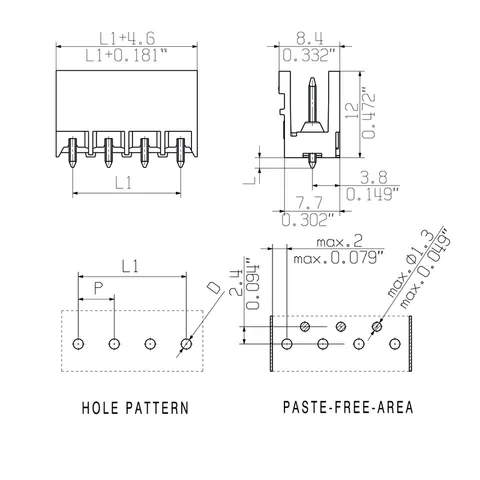

CAD Models
3D CAD model and technical drawings, ready for your design software.
