Weidmuller 1838230000

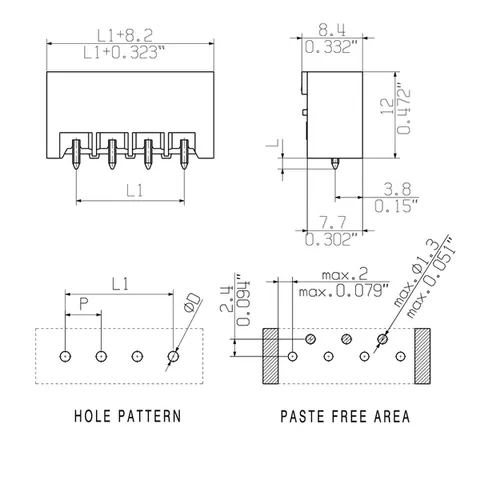

The PCB plug-in connector features a closed side male header designed for THT/THR solder connections, with a 5.08 mm pitch and a 180° outgoing elbow. This model accommodates four poles and has a solder pin length of 3.2 mm, which is tinned for enhanced conductivity.

In terms of rated data, the connector complies with UL 1059, with a rated voltage of 300 V for both use groups B and D, and a maximum rated current of 18.5 A for use group B. It is also tested according to IEC standards, allowing for a rated current of up to 27.5 A at 20°C across its minimum number of poles.

The connector is constructed from LCP GF insulating material, offering a high Comparative Tracking Index (CTI) of ≥ 175 and an insulation strength of ≥ 108 Ω. Operating temperatures range from -50°C to 100°C, ensuring suitability for various applications.

With a net weight of only 2.22 g and dimensions of 23.52 mm in width, 15.2 mm in height, and 8.5 mm in depth, this connector is compact yet efficient. Its packaging is in a box measuring 35 mm in length, 115 mm in width, and 165 mm in height.

Approved by CSA, EAC, and UR, this product also adheres to ROHS standards and offers gold-plated contact surfaces upon request. The Designation Code for this product is essential for reference in technical applications.
