Weidmuller 1838330000
SL-SMT 5.08HC/14/180G 3.2SN BK BX
Product Description

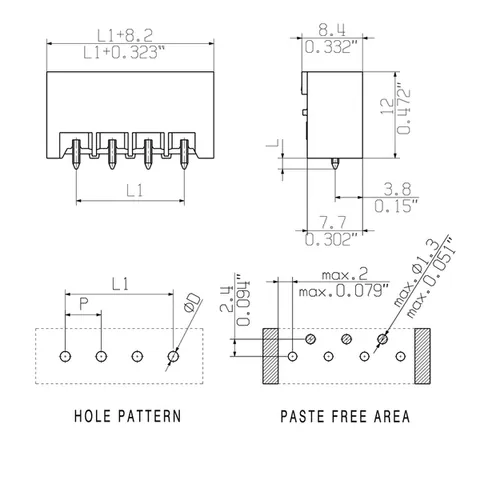

The SL-SMT 5.08HC/14/180G 3.2SN BK BX is a male header PCB plug-in connector suitable for both THT and THR solder connections, specifically designed with a pitch of 5.08 mm. This model features 14 poles, with each pole having a solder pin length of 3.2 mm and a maximum plugging force of 9 N.
Constructed with LCP GF insulating material, it exhibits a black coloration and complies with moisture sensitivity level 1. The connector supports a range of operating temperatures from -50 °C to 100 °C and is rated for a maximum current of 18.5 A at 300 V according to UL 1059 standards. The approvals also include CSA, EAC, and UR, ensuring compliance with various international standards.
Additionally, the connector's design allows for a maximum of 25 plugging cycles, making it suitable for diverse applications. Its dimensions measure 74.32 mm in width and 15.2 mm in height, with a net weight of 6.46 g. The component is packaged in a box, with specific packaging dimensions of 40 mm x 110 mm x 225 mm. The product aligns with the ETIM classification EC002637 and has a UL file number E60693.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (UR)
- UR
- Certificate No. (UR)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 18.5 A
- Rated current (Use group D / UL 1059)
- 10 A
