Weidmuller 1838350000

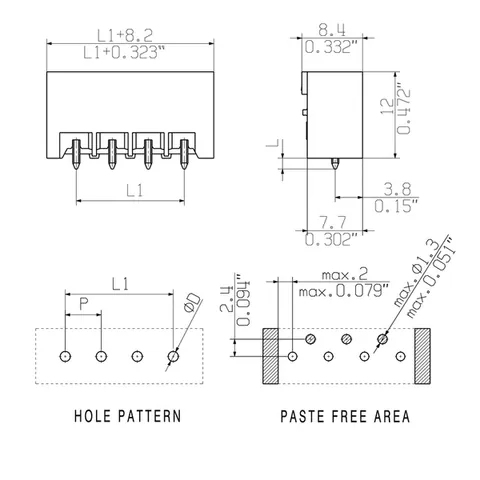

5.08mm PCB Plug-in Connector, Male Header, 16 Poles, 180°
Product Description
The connector is designed for PCB applications with a pitch of 5.08 mm. It accommodates 16 poles with a solder pin length of 3.2 mm, providing reliable connectivity. Rated for a voltage of 300 V and a maximum current of 18.5 A under specific conditions, the device complies with UL 1059 standards. Its robust construction includes a black LCP GF insulating material, ensuring durability and performance in various environments.
The product dimensions are as follows: a width of 84.48 mm, height of 15.2 mm, and depth of 8.5 mm, with a net weight of 7.14 g. The connector is approved by multiple standards, including CSA and EAC, and meets stringent requirements with a UL flammability rating of V-0. It operates effectively within a temperature range of -50 °C to 100 °C.
With a rated voltage for surge voltage class II/2 at 400 V and an impulse voltage rating of 4 kV, the connector is suitable for various industrial applications. Its design allows for a maximum of 25 plugging cycles with a plugging force of 9 N per pole, ensuring reliable connections over time. The connector is packaged in a box with dimensions 40 mm x 110 mm x 225 mm.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (UR)
- UR
- Certificate No. (UR)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 18.5 A
- Rated current (Use group D / UL 1059)
- 10 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1838350000, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
