Weidmuller 1840380000
5.00 mm Male Header Connector, 5 Poles, 90°
Product Description
This 5.00 mm male header connector is designed for PCB plug-in applications, featuring a total of 5 poles and a 90° outgoing elbow. The connector is suitable for THT/THR solder connections with a solder pin length of 3.2 mm and is constructed from high-quality materials for reliable performance.
It complies with various standards, including UL 1059, with rated voltages of 300 V and rated currents of up to 18.5 A, depending on the use group. The connector has been tested according to IEC standards, ensuring safe operation under defined conditions.
Constructed from LCP GF insulating material, the connector exhibits a flammability rating of UL 94 V-0. It is suitable for a wide operating temperature range of -50 °C to 100 °C, with a moisture sensitivity level (MSL) of 1. The product is packaged in a box for secure storage and transport.
Approval certificates include CSA, EAC, and UR, ensuring compliance with international safety and quality standards. Reference to approval values indicates that specifications are maximum values, and details can be found on the respective certificates.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (UR)
- UR
- Certificate No. (UR)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 18.5 A
- Rated current (Use group D / UL 1059)
- 10 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1840380000, including specifications and features.
CAD Models

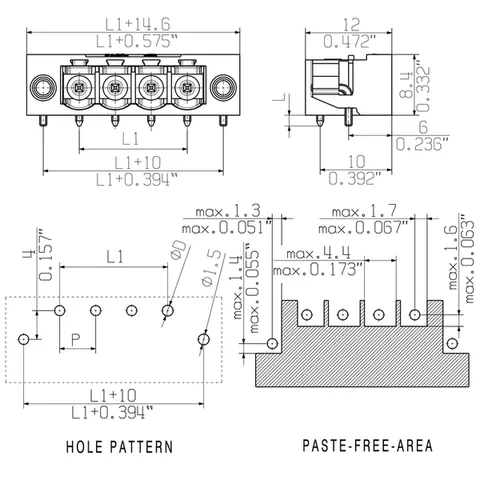

3D CAD model and technical drawings, ready for your design software.
