Weidmuller 1851110000
SU 10.16HP/09/90SF 3.5AG BK BX
Product Description

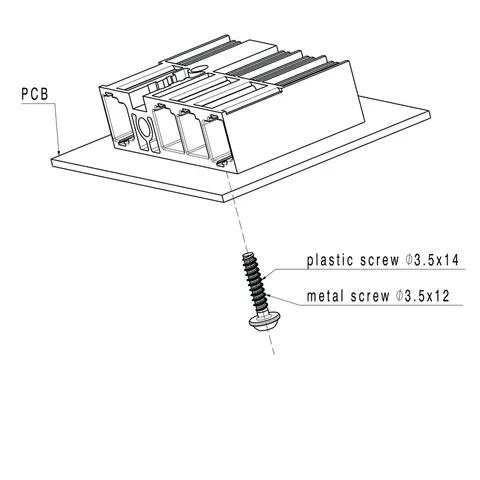

This product is a PCB plug-in connector designed for efficient connectivity in various applications. It features a male header configuration with a screw/clip-on flange and utilizes a THT solder connection. With a pitch of 10.16 mm and a total of 9 poles, the connector supports a solder pin length of 3.5 mm that is silver-plated for enhanced conductivity.
Compliance with UL 1059 standards is evident, with rated voltages of 300 V for use groups B and C, and 600 V for group D, alongside a rated current of 60 A for groups B and C, and 5 A for group D. The connector is certified with cURus and EAC approvals, ensuring adherence to international safety standards.
Constructed from PBT GF insulating material and colored black (RAL 9011), this connector is rated for operational temperatures ranging from -50 °C to 120 °C. It features a minimum clearance distance of 8.9 mm and a creepage distance of 10.5 mm, ensuring it meets stringent electrical insulation requirements.
With a net weight of 43.95 g, this connector is packaged in a box with dimensions of 80 mm x 90 mm x 300 mm. The product is part of the OMNIMATE Power - series BU/SU 10.16HP, designed for board connections with a touch-safe protection rating of IP20.
Need more information?
Offer details
- Offer from:
Trusted supplier — Czechia, member since 2023, 100–499 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (cURus)
- cURus
- Certificate No. (cURus)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group C / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 600 V
- Rated current (Use group B / UL 1059)
- 60 A
