Weidmuller 1862600000

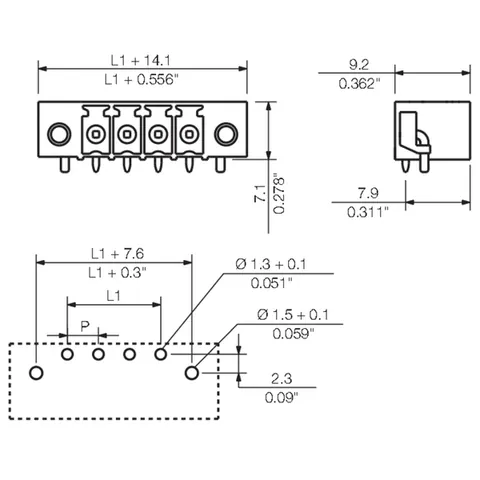

PCB Plug-in Connector SC-SMT 3.81/05/90LF 1.5SN BK BX
Product Description
The SC-SMT 3.81/05/90LF 1.5SN BK BX is designed for reliable PCB connections, featuring a male header with a 3.81 mm pitch and a total of 5 poles. The component utilizes THT/THR solder connections, ensuring secure integration onto printed circuit boards.
With a solder pin length of 1.5 mm, this connector supports a rated voltage of 300 V and a rated current of 11 A according to UL 1059 specifications. Approval certifications include CSA, cURus, and EAC, confirming its compliance with international standards.
Constructed from LCP GF insulating material with a black finish, the connector is suitable for operating temperatures ranging from -50 °C to 120 °C and storage temperatures between -25 °C and 55 °C. It features touch-safe protection rated IP 20 as per DIN VDE standards, ensuring user safety during operation.
For ease of installation, the SC-SMT series includes a single row of connectors, with a safe finger touch design and multiple solder pin specifications, confirming its versatility in various applications.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (cURus)
- cURus
- Certificate No. (cURus)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 11 A
- Rated current (Use group D / UL 1059)
- 11 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1862600000, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
