Weidmuller 1884970000
Printed Circuit Board Terminal LSF-SMT 7.62/04/135 1.5SN BK TU
Product Description
The LSF-SMT 7.62/04/135 1.5SN BK TU is designed for printed circuit board applications, featuring a pitch of 7.62 mm and supporting up to 4 poles. The terminal is equipped with a PUSH IN wire connection method, allowing for efficient electrical connections. It is constructed from LCP GF insulating material, ensuring durability and compliance with various standards including IEC 60664-1 and UL 1059.

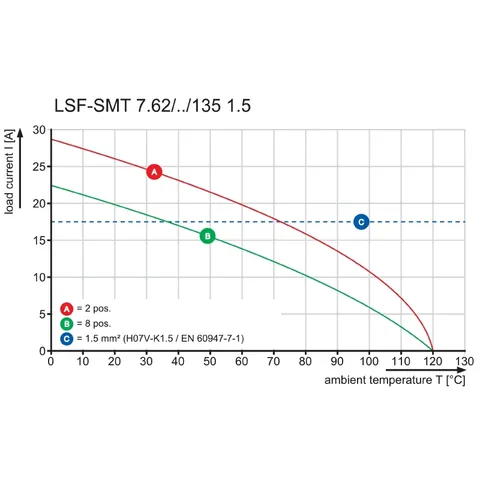

With a maximum clamping range of 1.5 mm², this terminal accommodates a wide range of wire sizes from AWG 28 to AWG 14. The rated current capacity is up to 17.5 A under standard conditions, with a rated voltage of 300 V for both UL and CSA applications. The terminal is packaged in a tube format, with dimensions of 27.06 mm in width, 14.4 mm in height, and a depth of 12.7 mm.
Additionally, the terminal offers an operating temperature range from -50 °C to 120 °C and is rated for a short-time withstand current resistance of 80 A for 1 second. The product is classified under the ETIM 6.0 code EC002643 and comes with approvals from CSA, cURus, and VDE, confirming its reliability and safety in various applications.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (cURus)
- cURus
- Certificate No. (cURus)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 12 A
- Rated current (Use group D / UL 1059)
- 10 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1884970000, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
