Weidmuller 1906302900
M12 Connector Cable SAIL-M12GM12G-4-29U
Product Description
The M12 connector cable, designated as SAIL-M12GM12G-4-29U, features a robust construction tailored for sensor and actuator connectivity. With a length of 29 meters, this cable offers a connection standard compliant with IEC 61076-2-101 and is suitable for various industrial applications.
It consists of a straight pin to socket configuration, utilizing PUR as the housing material while ensuring a high degree of protection with ratings of IP65, IP66, IP67, and IP68 when properly installed. The cable is unshielded and incorporates a core cross-section of 0.34 mm², supporting a rated voltage of 250 V and a rated current of 4 A. The contact surface is gold-plated to enhance conductivity and reliability.
The cable's mechanical specifications include a bending radius of 5 times the cable diameter for stationary use and 10 times for moving applications, with a torsion resistance of 360°/m. It is designed to endure a temperature range of -25 to +80 °C in motion and -40 to +80 °C when stationary, suited for diverse environmental conditions. Additionally, it is compliant with various standards and approvals, including cULus, with a certificate number of E307231.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Approvals
- CULUS
- UL File Number Search
- E307231
- Connector standard
- IEC 61076-2-101
- Certificate no. (cULus)
- E307231
- AF size
- 12 mm
- Version

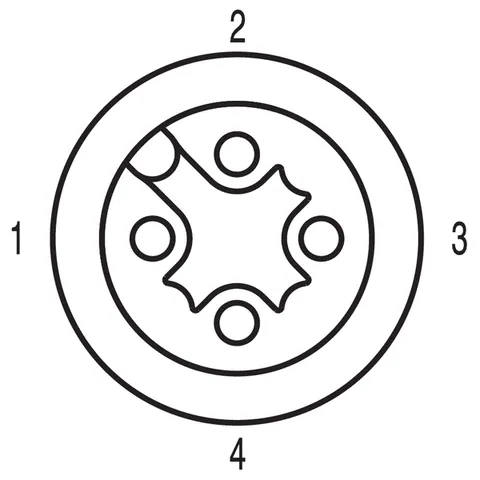

- pin, straight - socket, straight
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1906302900, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
