Weidmuller 1925320150

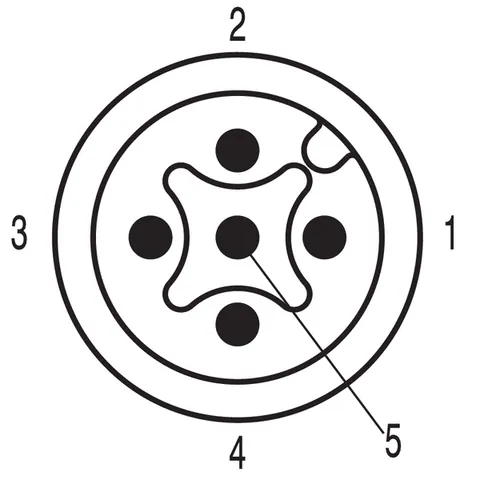

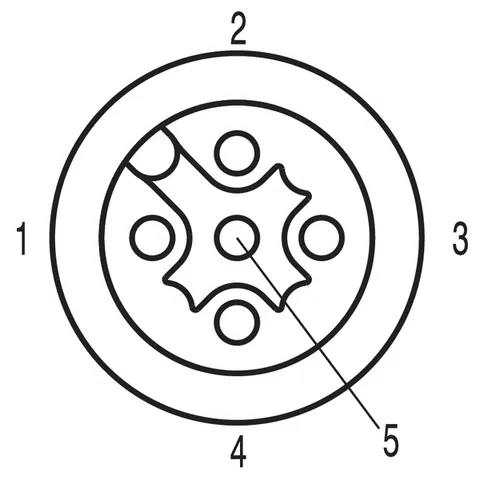

This M12 connector cable, designated as SAIL-M12GM12G-5-1.5V, is engineered for reliable connectivity in sensor and actuator applications. It includes a 5-pole configuration and measures 1.5 meters in length, making it suitable for various installations.

The cable is constructed with PVC insulation and a black sheath, ensuring durability and compliance with safety standards. It adheres to IEC 61076-2-101 specifications and is approved under CULUS regulations with certificate number E307231. The cable's dimensions reflect a core cross-section of 0.34 mm² and an outer diameter of 5.7 ± 0.2 mm.

With an operating temperature range from -25 °C to +80 °C, this connector cable is designed to function effectively in diverse environments. It is rated for a voltage of 125 V and a current of 4 A, ensuring adequate power handling capabilities. The contact surfaces are gold-plated for improved conductivity, while the cable maintains a protection degree of IP65/IP66/IP67/IP68 when securely connected.

Overall, the M12 Connector Cable offers flexibility and reliability with a significant number of plugging cycles (≥ 100) and a pollution severity rating of 3, confirming its robustness in various applications.
