Weidmuller 1938240300

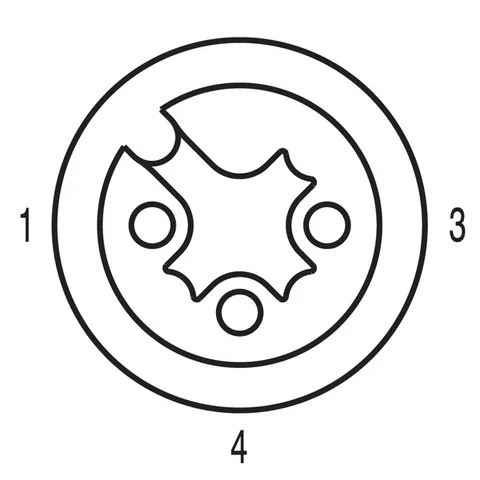

The SAIL-M8GM12W-3-3.0V is a connecting line designed for sensor and actuator applications, equipped with M8 / M12 connectors. This variant features a total of 3 poles and a length of 3 meters. The connection type includes pin, straight-socket, and a 90° configuration. It is constructed from PVC and is not shielded, with a halogen content.

In terms of technical specifications, the device complies with IEC 61076-2-101 and IEC 61076-2-104 standards, ensuring robust performance across various applications. The rated voltage is 60 V with a rated current of 4 A, and the product exhibits a gold-plated contact surface. It provides a protection degree of IP65, IP66, IP67, and IP68 when properly screwed in, making it suitable for challenging environments.

The operating temperature range is from -25°C to +80°C, with a temperature tolerance for moving applications between -5°C and 80°C. Additionally, the cable's core cross-section measures 0.25 mm², and its outer diameter is 4.5 ± 0.2 mm. The product is rated for a minimum of 100 plugging cycles and has a tightness torque specification of 0.5 - 0.6 Nm for M8 and 0.8 - 1.2 Nm for M12 connections. This line is not configurable for cable length adjustments and is not suitable for cable carriers.

For environmental compliance, it adheres to REACH regulations concerning lead. The product carries various approvals, including EAC and ROHS compliance, evidenced by its UL File Number E307231.
