Weidmuller 1938270500

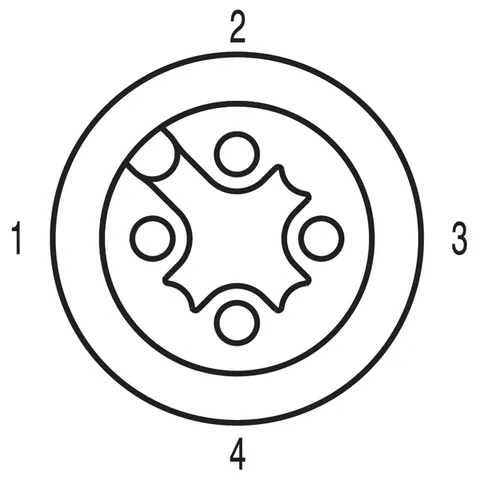

The SAIL-M8GM12W-4-5.0V connector line is designed for sensor and actuator applications, offering a length of 5 meters and a configuration of 4 poles. It features a pin type connection with both straight and socket orientations, and is rated for a voltage of 30 V and a current of 4 A. The connector adheres to IEC 61076 standards, ensuring compatibility and reliability in various settings.

Constructed with a polyurethane housing, it withstands a wide operating temperature range of -25°C to +80°C. The connector achieves IP65, IP66, IP67, and IP68 protection ratings when properly installed, making it suitable for challenging environments. The gold-plated contact surface ensures optimal conductivity, while the PVC sheath provides additional durability.

With a net weight of 100 g, the connector's outside diameter measures 4.8 ± 0.2 mm. It is not shielded and features a color-coded wiring scheme: brown, white, blue, and black. This product does not support cable carriers and has a torsion resistance of 0°/m, emphasizing its static application suitability. The connector's assembly is compliant with various environmental standards, including REACH and RoHS, ensuring minimal impact on health and safety.
