Weidmuller 1953120000

The LMZF 10/2/135 3.5SW consists of printed circuit board terminals designed for effective connectivity in electronic applications. With a width of 22.5 mm and a height of 16.48 mm, this component is suitable for various PCB configurations. It incorporates a tension-clamp connection that accommodates wire cross-sections ranging from 0.13 mm² to 2.5 mm², ensuring secure and reliable connections.

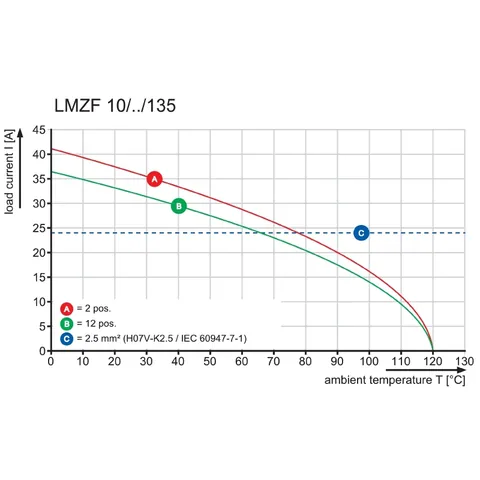

Rated for a maximum current of 24 A and a voltage of up to 1,000 V for pollution degree II, this terminal is compliant with IEC standards 60664-1 and 61984. The contact material is a copper alloy with a tinned surface, providing excellent conductivity and corrosion resistance. Additionally, the product is designed to operate within a temperature range of -50 °C to 120 °C, making it versatile for various industrial environments.

With a solder pin length of 3.5 mm and a pitch of 10 mm, it features a low profile suitable for densely packed circuit boards. The terminals are packaged in a box, ensuring protection during transport and storage. This product conforms to multiple safety and performance standards, including cURus and EAC certifications, reflecting its suitability for high-quality applications.
