Weidmuller 1953950000

The LMZFL 10/4/135 3.5OR is a printed circuit board terminal designed for efficient connectivity in electronic applications. It features a 135° conductor outlet and accommodates a maximum clamping range of 2.5 mm². With a solder pin length of 3.5 mm, this terminal ensures secure connections. The component is specifically engineered for tension clamp connection with an actuator, providing reliable performance in various operational settings.

Constructed from high-quality materials, the terminal exhibits an operational temperature range from -50°C to 120°C, making it suitable for diverse environmental conditions. The insulating material, Wemid (PA), has a Comparative Tracking Index (CTI) of ≥ 600, ensuring excellent electrical insulation properties. Additionally, the terminal meets stringent standards, including IEC 60664-1 and IEC 61984, with a rated voltage of 1,000 V under surge voltage class II/2.

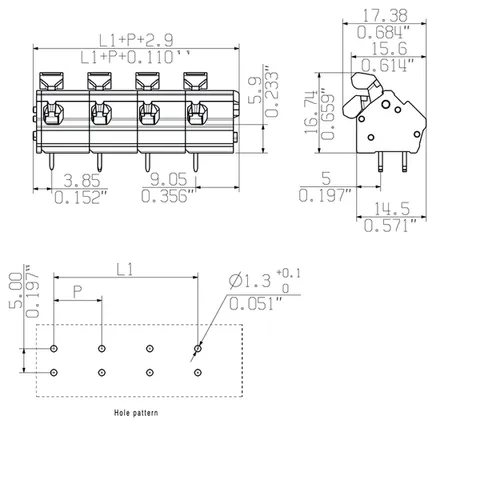

It has been approved by cURus and EAC, ensuring compliance with international safety standards. The product measures 42.9 mm in width, 20.24 mm in height, and 15.6 mm in depth, with a net weight of 8.32 g. The LMZFL 10/4/135 3.5OR is part of the OMNIMATE Signal product family, designed for easy installation with THT solder connections.
