Weidmuller 2000970000

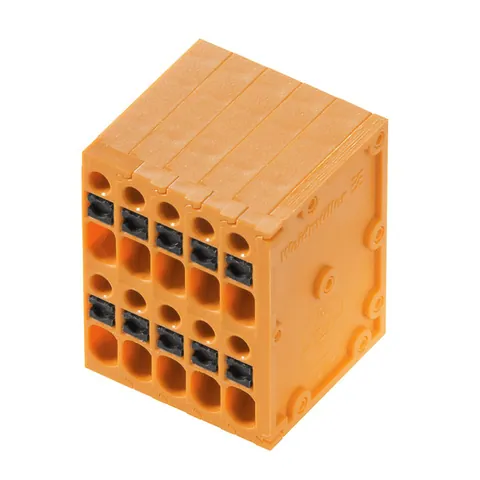

3.50 mm PCB Terminal with 10 Poles and 90° Angle
Product Description

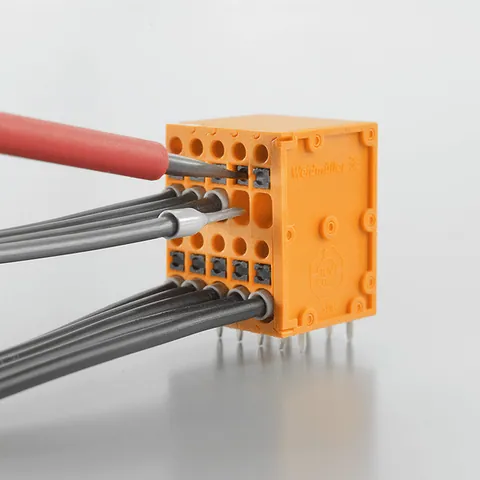

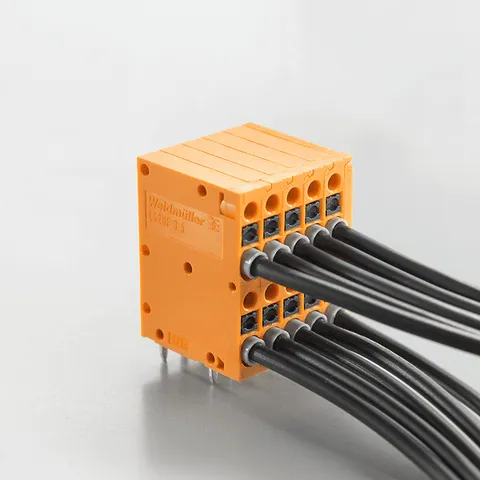

The terminal is designed for printed circuit board applications, featuring a pitch of 3.50 mm and allowing for a maximum clamping range of 1.5 mm². The orange PUSH IN connection facilitates easy installation while maintaining reliable electrical performance.
With a rated current of 12.5 A and a rated voltage of 150 V according to UL 1059 standards, this terminal supports wire cross sections ranging from AWG 26 to AWG 16. It is constructed from high-quality PA 66/6 insulating material, ensuring durability and compliance with operational safety norms.

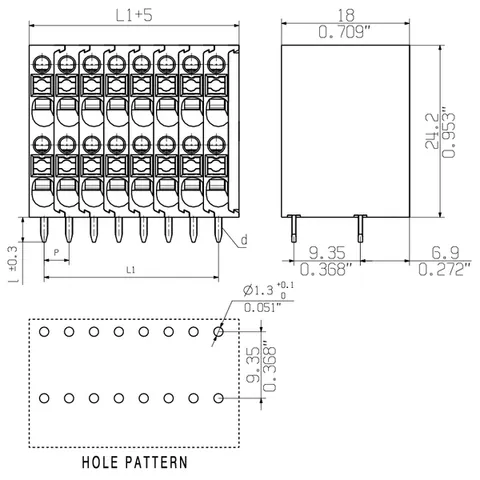

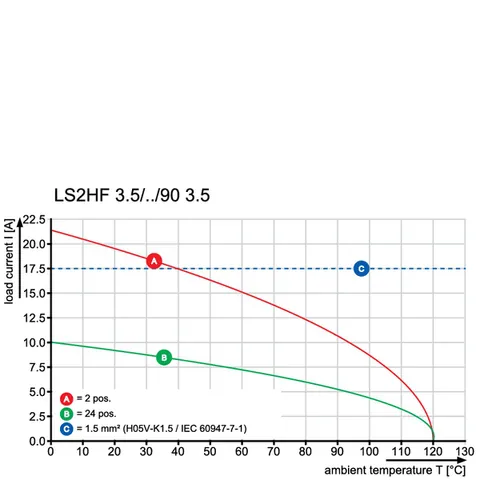

Dimensions include a width of 22.5 mm, a height of 27.7 mm, and a depth of 18 mm, with a net weight of 9.31 g. The terminal operates effectively in a temperature range from -50 °C to 120 °C, making it suitable for various environmental conditions.
This product falls under the OMNIMATE Signal series and features a THT solder connection for mounting onto PCBs. The terminal's touch-safe design meets IP 20 protection standards as per DIN VDE 0470.
Designation Code: LS2HF 3.50/10/90 3.5SN OR BX.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (cURus)
- cURus
- Certificate No. (cURus)
- E60693
- Rated voltage (Use group B / UL 1059)
- 150 V
- Rated voltage (Use group D / UL 1059)
- 150 V
- Rated current (Use group B / UL 1059)
- 12.5 A
- Rated current (Use group D / UL 1059)
- 12.5 A
