Weidmuller 2013890000

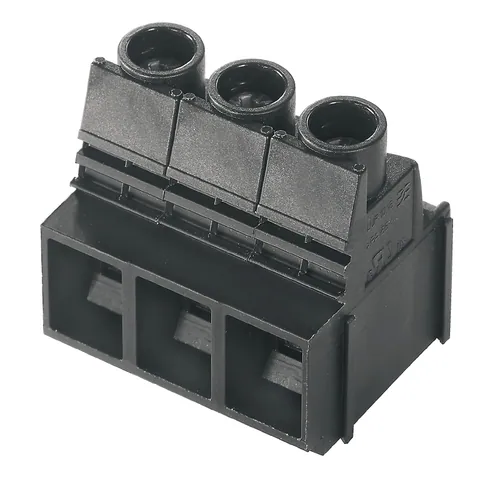

This printed circuit board terminal features a width of 61.76 mm and height of 36.5 mm, designed for a clamping range of up to 16 mm². It utilizes a clamping yoke connection method and is suitable for installation via THT solder connections with a 90° conductor outlet direction. The solder pin length is specified at 5 mm, ensuring compatibility with various PCB applications.

With a rated voltage of 600 V across multiple use groups according to UL 1059 standards, this terminal can handle a rated current of up to 51 A, making it ideal for demanding electrical environments. The terminal is constructed from Wemid (PA) insulating material, rated for operating temperatures ranging from -50 °C to 120 °C, providing durability in diverse conditions.

Additional features include a Comparative Tracking Index (CTI) of ≥ 600 and a UL 94 flammability rating of V-0, ensuring safety and reliability. It conforms to major standards including IEC 60664-1 and IEC 61984, with an IP20 touch-safe protection rating when plugged. The terminal's design allows for a maximum of 12 adjacent poles per row, supporting flexible configurations in circuit design. The product family is classified under OMNIMATE Power, series LUP, and carries the designation code for easy identification.
