Weidmuller 2014900000

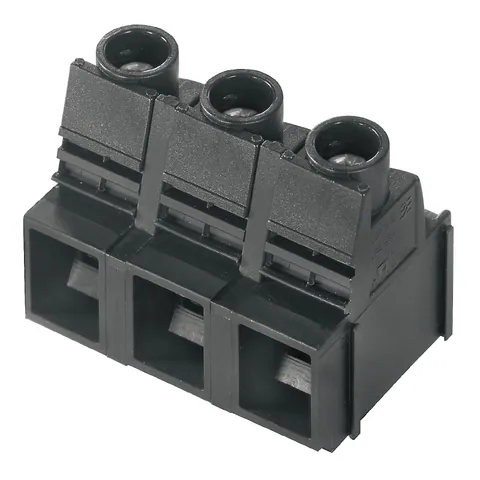

The LUP 12.70/09/90 5.0SN BK BX is designed for PCB applications, providing a reliable connection with a pitch of 12.7 mm and 9 poles. The terminal supports a maximum clamping range of 16 mm², accommodating wire sizes from AWG 22 to AWG 6, ensuring versatility in various electrical setups.

Constructed from Wemid (PA) material, the terminal features a black finish and meets stringent safety and performance standards, including cURus and ROHS compliance. The rated voltage is 600 V for use groups B and C, with a maximum current rating of 65 A. This component is suitable for installation in environments with temperatures ranging from -50 °C to 120 °C.

With a compact design, the terminal measures 112.56 mm in width and 36.5 mm in height, weighing 91.88 g. It incorporates a 90° conductor outlet direction and is mounted using a THT solder connection. The touch-safe protection class is IP20 when plugged in and IP10 when unplugged, ensuring safety during operation.

Additional specifications include a tightening torque range of 1.2 Nm to 1.5 Nm, a short-time withstand current resistance of 700 A for 1 second, and a comparative tracking index (CTI) of ≥ 600. Approval values are provided in accordance with relevant certification standards, confirming the terminal's reliability in complex electrical systems.
