Weidmuller 2453720000

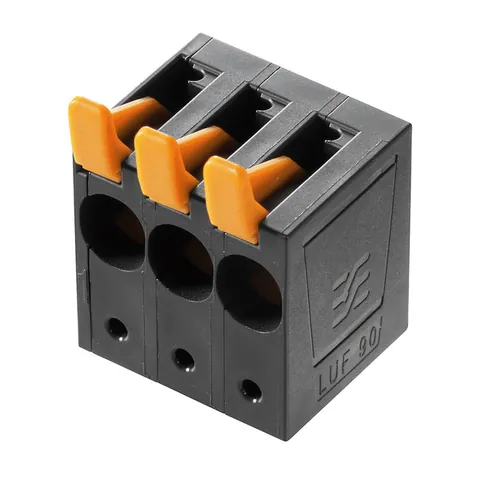

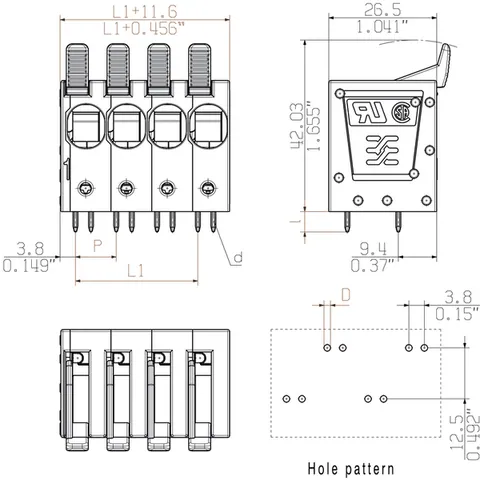

The printed circuit board terminal with part number LUF 10.00/05/90V 5.0SN BK BX is designed for efficient connectivity in electronic applications. It features a pitch of 10.00 mm and accommodates up to 5 poles. The PUSH IN connection method facilitates easy wiring, while the 90° conductor outlet direction optimizes space on the PCB.

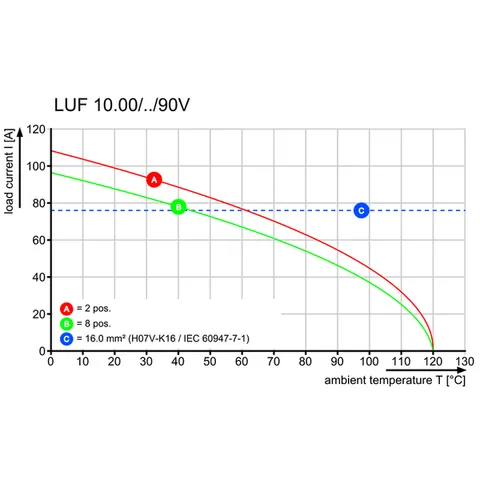

With a solder pin length of 5 mm and a maximum clamping range of 16 mm², this terminal is compatible with various wire types including solid, stranded, and flexible conductors. The rated current is up to 76 A at a temperature of 20°C, ensuring reliable performance under typical operating conditions.

Constructed from high-quality materials, the terminal is insulated with Wemid (PA) and has a UL 94 flammability rating of V-0. It operates effectively in a temperature range from -40°C to 120°C, making it suitable for a wide array of industrial environments. Additionally, it complies with cURus and RoHS standards, ensuring it meets stringent safety and environmental regulations.

For installation, the terminal requires a THT solder connection and is designed for use with a screwdriver blade of dimensions 0.8 x 4.0 mm. Its touch-safe protection adheres to DIN VDE standards, providing peace of mind during operation.
