Weidmuller 2492000000

The LUF 15.00/02/90V 5.0SN BK BX terminal is designed for printed circuit board applications, incorporating a two-pole configuration with a 90° conductor outlet direction. This terminal utilizes a PUSH IN connection method, facilitating easy assembly and reliable performance.

With a maximum clamping range of 16 mm², it supports various wire types, including solid, stranded, and flexible conductors. The terminal accommodates wire cross-sections ranging from AWG 18 to AWG 4, ensuring compatibility with a range of installations. Rated for a maximum current of 58 A at 600 V, it meets stringent standards for safety and reliability.

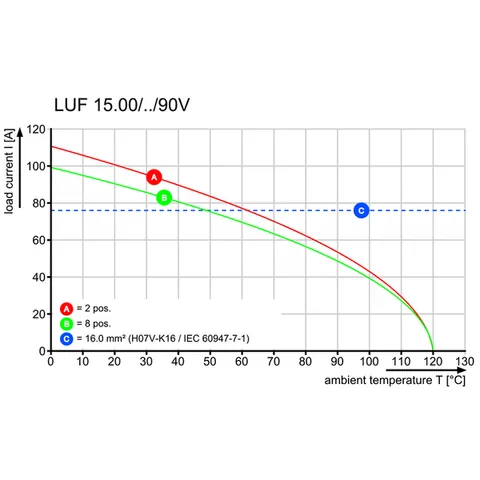

The terminal is housed in a black plastic casing made from Wemid (PA), featuring a comparative tracking index (CTI) of ≥ 600 and an insulation strength of ≥ 108 Ω. It operates effectively within a temperature range of -40 °C to 120 °C and is designed with a UL 94 flammability rating of V-0.

The product is packaged in a box for convenience. Note that the rated data pertains solely to the component itself, and appropriate clearance and creepage distances must be considered according to relevant application standards. Compliance with IPC-A-610
