Weidmuller 2492230000

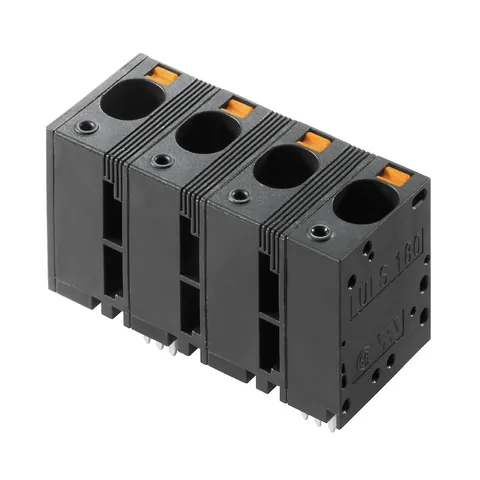

15.00 mm 4-Pole PCB Terminal Block 180°
Product Description
The terminal block is designed for printed circuit board applications, featuring a pitch of 15.00 mm and accommodating up to 4 poles. The 180° conductor outlet direction allows for versatile installation options. With a solder pin length of 5 mm, it connects securely to the PCB.
Constructed from Wemid (PA) insulating material and colored black, it provides reliable performance with a maximum clamping range of 16 mm². The device supports wire connections from AWG 18 to AWG 4, making it suitable for various applications.

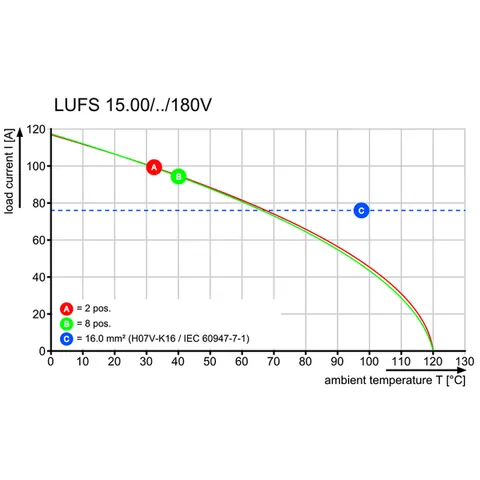

In terms of electrical ratings, this terminal block meets UL 1059 standards, with a rated voltage of 600 V across use groups B, C, and D, and is rated for a maximum current of 57 A. It has an operating temperature range from -40 °C to 120 °C, ensuring functionality in diverse environmental conditions.
The product is part of the OMNIMATE Power series LU, with touch-safe protection according to DIN VDE standards. Note that the terminal block's insulation strength is greater than or equal to 108 Ω, making it suitable for various industrial environments.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (cURus)
- cURus
- Certificate No. (cURus)
- E60693
- Rated voltage (Use group B / UL 1059)
- 600 V
- Rated voltage (Use group C / UL 1059)
- 600 V
- Rated voltage (Use group D / UL 1059)
- 600 V
- Rated voltage (Use group E / UL 1059)
- 1,000 V
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 2492230000, including specifications and features.
CAD Models

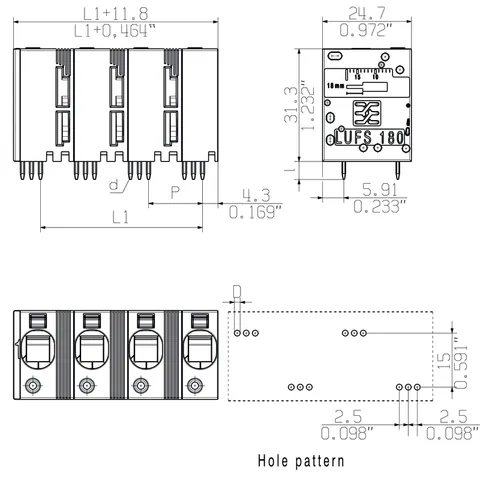

3D CAD model and technical drawings, ready for your design software.
Product data updated: 19-09-2026
