Weidmuller 2500580000

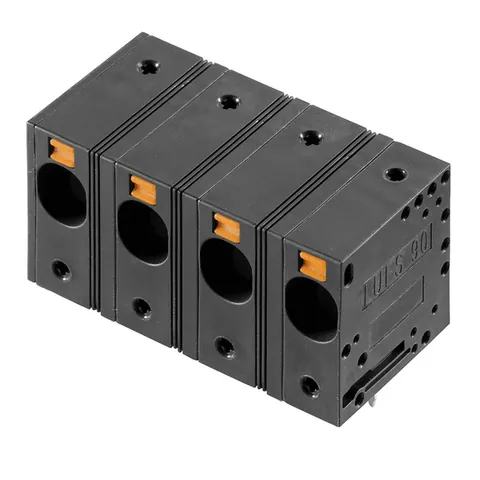

The product is a printed circuit board terminal designed with a pitch of 15.00 mm and a configuration of 4 poles arranged at a 90° angle. It incorporates a PUSH IN connection method without an actuator, allowing for efficient wire connections. The maximum clamping range is 16 mm², accommodating a variety of wire sizes.

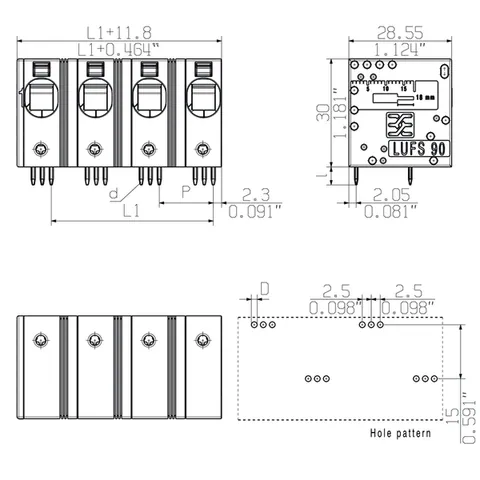

With a solder pin length of 5 mm, this terminal is compatible with THT solder connections. The overall dimensions include a width of 56.8 mm, a height of 35 mm, and a depth of 28.55 mm, resulting in a net weight of 46.967 g. The terminal is made from insulating material, Wemid (PA), with a black color finish, and is rated for a wide range of operating conditions, including temperatures between -40 °C to 120 °C.

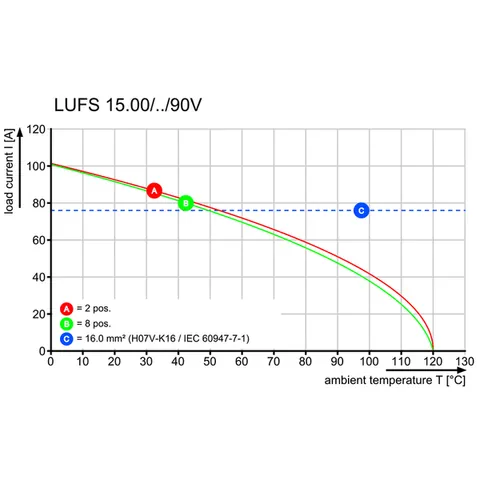

According to UL 1059 standards, the terminal supports a rated voltage of up to 1,000 V and a rated current of 76 A at a temperature of 20 °C. It has been certified with cURus under certificate number E60693, ensuring compliance with recognized safety standards. Its construction also features high insulation strength and a Comparative Tracking Index (CTI) of ≥ 600, making it suitable for various industrial applications.
