Weidmuller 2529380000
SV-SMT 7.62HP/02/270MF2 SC/8 2.6SN BX
Product Description

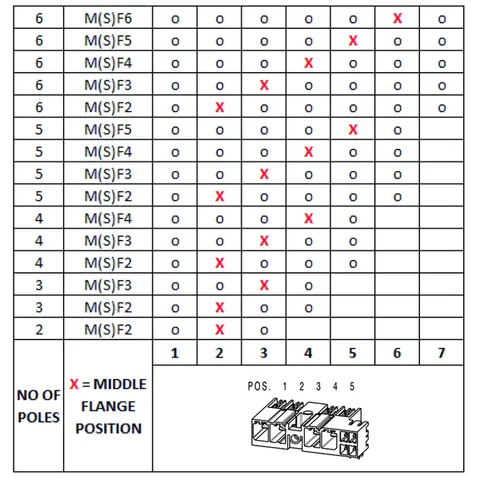

This PCB plug-in connector is a male header with a closed side and a middle flange, suitable for THT/THR solder connections. It has a pitch of 7.62 mm and accommodates 2 poles, with a solder pin length of 2.6 mm. The connector is constructed with tinned copper alloy contacts housed in a black PA GF HT insulating material, ensuring a robust connection.
It operates within a temperature range of -50°C to 130°C and has a rated voltage of 300 V for use groups B and C, and 600 V for group D according to UL 1059 standards. The rated current is 33 A for groups B and C, while it is limited to 5 A for group D. The minimum clearance distance is 6.9 mm, and the creepage distance is a minimum of 9.6 mm, conforming to IEC 60664-1 and IEC 61984.
The connector's design ensures a touch-safe operation in compliance with DIN VDE standards. It has a volume resistance of 2.00 mΩ and can withstand up to 25 plugging cycles. Additionally, it features a maximum plugging force per pole of 12 N and a maximum pulling force of 7 N. This product belongs to the OMNIMATE Power series BV/SV 7.62HP, and it is packaged in a box.
Need more information?
Offer details
- Offer from:
Trusted supplier — Czechia, member since 2023, 100–499 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group C / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 600 V
- Rated current (Use group B / UL 1059)
- 33 A
- Rated current (Use group C / UL 1059)
- 33 A
- Rated current (Use group D / UL 1059)
- 5 A
Available Offers
(6)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierCzechiaTrusted supplier — member since 2023, 100–499 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time: 26 days | Supplier NetherlandsTrusted supplier — member since 2021 | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier PolandTrusted supplier — member since 2021, 50–99 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier LatviaTrusted supplier — member since 2024, 20–49 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier GermanyTrusted supplier — member since 2023, 5–9 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 2529380000, including specifications and features.
CAD Models

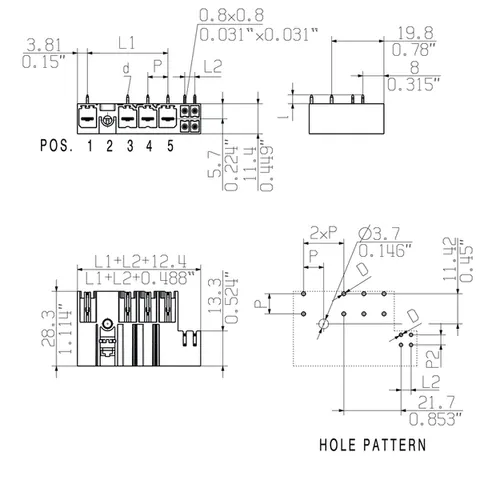

3D CAD model and technical drawings, ready for your design software.
Product data updated: 24-04-2025
