Weidmuller 2529580000
SV-SMT 7.62HP/03/270MSF2 SC/6 2.6SN BX
Product Description

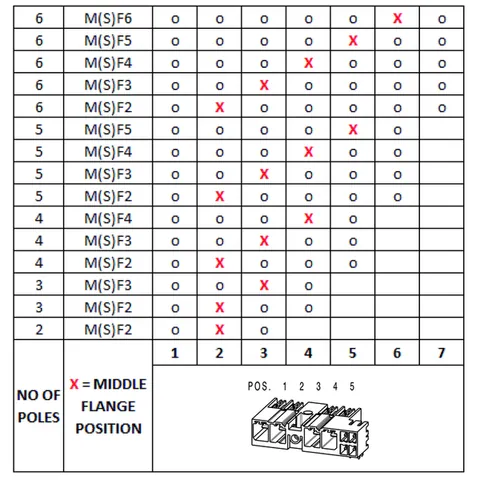

The SV-SMT 7.62HP/03/270MSF2 SC/6 2.6SN BX is a male header PCB plug-in connector featuring a closed side and a middle screw flange.
It supports THT/THR solder connections with a pin length of 2.6 mm. The connector is rated for a voltage of 300 V in both use groups B and C according to UL 1059, and up to 600 V in use group D. Additionally, it is compliant with IEC standards, demonstrating a rated current of 41 A across multiple configurations.
With an insulating material of PA GF HT [MSL3], this connector maintains a robust performance across a temperature range of -50 °C to 130 °C. The minimum clearance distance is 6.9 mm, and the creepage distance is 9.6 mm, ensuring safety and reliability in various applications. The packaging comes in a box, with a net weight of 2 g.
This product is recognized under the Designation Code EC002637, ensuring adherence to relevant industrial standards.
Need more information?
Offer details
- Offer from:
Trusted supplier — Czechia, member since 2023, 100–499 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group C / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 600 V
- Rated current (Use group B / UL 1059)
- 33 A
- Rated current (Use group C / UL 1059)
- 33 A
- Rated current (Use group D / UL 1059)
- 5 A
