Weidmuller 9457230250

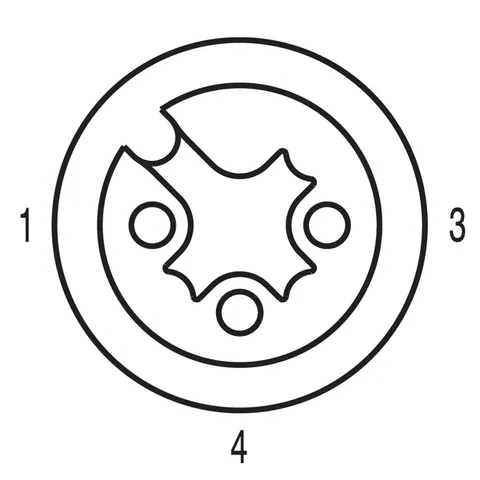

This M12 connector line, designated as SAIL-M12GM12G-3-2.5U, is tailored for sensor and actuator connections, providing a reliable and efficient interface. The connection type is M12 to M12 with a pin configuration, and it spans 2.5 meters in length. Constructed from PUR, the cable sheath enhances durability while remaining halogen-free.

The connector adheres to international standards including IEC 61076-2-101, ensuring compatibility and safety in various applications. With a rated voltage of 250 V and current of 4 A, it operates effectively within a temperature range of -25°C to +80°C. The IP65, IP66, IP67, and IP68 protection ratings, when properly installed, allow it to withstand harsh environmental conditions.

Additional specifications include a core cross-section of 0.34 mm² and a minimum bending radius of 5 times the cable diameter when stationary and 10 times when in motion. The cable is designed for high flexibility with a torsion resistance of 360° per meter and can endure up to 2 million bending cycles. The connection thread is M12, with a tightening torque requirement between 0.8 and 1.2 Nm, ensuring a secure fit.
